    4-400A Portable Pipe To Pipe Inverter Automatic Orbital Welding Machine With TIG Welding Method

    Product Description

    4-400A portable pipe to pipe inverter automatic orbital welding machine with TIG welding method

    Orbital welding machine can be used for tube outer diameter from Ф3-Ф180mm tube-tube automatic welding at all positions. It is especially suitable for welding carbon steel, alloy steel, stainless steel and titanium alloy thin-walled tubes.

    Advantage:

    1. Mature technology, sealed welding, weld pipe perfect. Used the maxon servo motor adapt for small space; The welding head can be rotated continuously and don't need the spot welding joint.
    2. Welding accurate. Using IGBT inverter dc pulse and TIG power supply with the advanced control technology to ensure the finished product is perfect.
    3. 7 types of welding heads to adapt different requirements. Customer could choose the welding head according the pipe size and your space. You also could buy some different heads to cooperate the control system for cost saving.
    4. Digital programming and LCD touch. The system store could have 100 different process specifications and each one can be divided into 6 sections. You can used it anytiome.

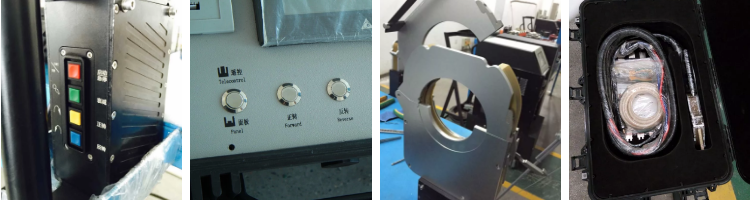

    Detailed Images

    There are some detail of our arc welding machine.


    Welding Head Models And Parameters
    Welding head
    KHGC 20
    KHGC 34
    KHGC 63
    KHGC 89
    KHGC 114
    Welding Speed(r/min)
    0.6-10
    0.6-10
    0.3-5
    0.1-2.5
    0.1-2.5
    Suitable Dia.(mm)
    3-20
    10-34
    12-63
    16-89
    20-114
    Electrode Dia.(mm)
    1.6
    1.6/2.4
    1.6/2.4
    1.6/2.4
    1.6/2.4

    The KHGC Orbital welding machine have 7 types to suitable for welding different pipe diameters. Customer could choose it by your siae of need welding pipe and space.
    It's also could buy a set of control system and different welding head to used for different pipe.


    Technical Parameter Of Orbital welding machine
    Outer diameter of weldable pipe
    φ3 mm ~φ180 mm
    Rated load duration
    60 %
    Power control mode
    IGBT
    Rated no-load voltage
    78 V
    Power
    380V 50 / 60 Hz
    Rated welding voltage
    22.6 V
    Voltage allows range of fluctuation
    380 V ± 10 %
    Adjustment range of welding current
    5 ~ 300 A
    Rated input capacity
    13.9 KVA
    Pulse frequency
    0.5 ~ 500 Hz
    Rated input power
    9.5KW
    Pulse duty ratio
    5~95%

    Application

    Application for chemical, boiler, heat exchanger, pressure vessel, pharmaceutical, construction machinery, military and nuclear power industries.

    This is the reality effect show uesd of our Digital Welder.

    Packed

    Packed in wooden cases with shockproof foam up to about 30mm thick to ensure the safely. Professional logistics system to deliver the goods to port on time.
