Specifications of Corrugated Sheet Roll Forming Machine

• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 5 Ton
• Material thickness: 0.3-0.8mm
• Material width: depend on customer’s requirement
• Main Motor Power: 3.5 Kw
• Hydraulic Motor Power: 3 Kw
• Forming Station: 12-18 ( depend on profile drawing )
• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
• Main Axis Material: High grade 45#, quenched and heat treatment.
• Axis Diameter: ¢ 76mm
• Working Speed: 0-15 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Material Of Cutting Blade: C r 12
• Heat Treatment of Cutting Blade: HRC 50-60
• Machine Frame stand: Welded structural steel
• Thickmess of Fame Steel: 18mm
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand
• Machine Weight: about 5 Ton

Main Components

• Decoiler -----------------------------------------------1 Unit
• Feeding guide ---------------------------------------1 Unit
• main roll forming machine ------------------------1 Unit
• Hydraulic cutting device ---------------------------1 Unit
• Hydraulic Station ------------------------------------1 Unit
• PLC computer control ------------------------------1 Unit
• Output table --------------------------------------------1 Unit

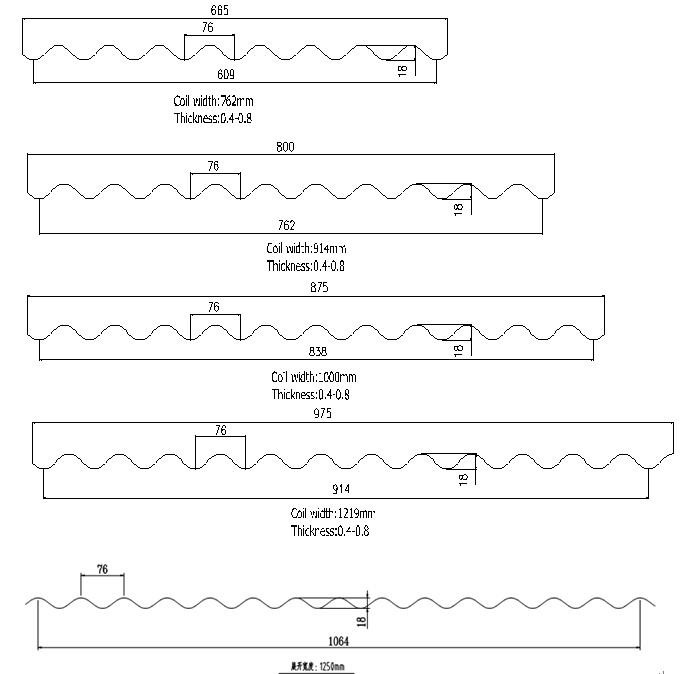

Reference Drawings
