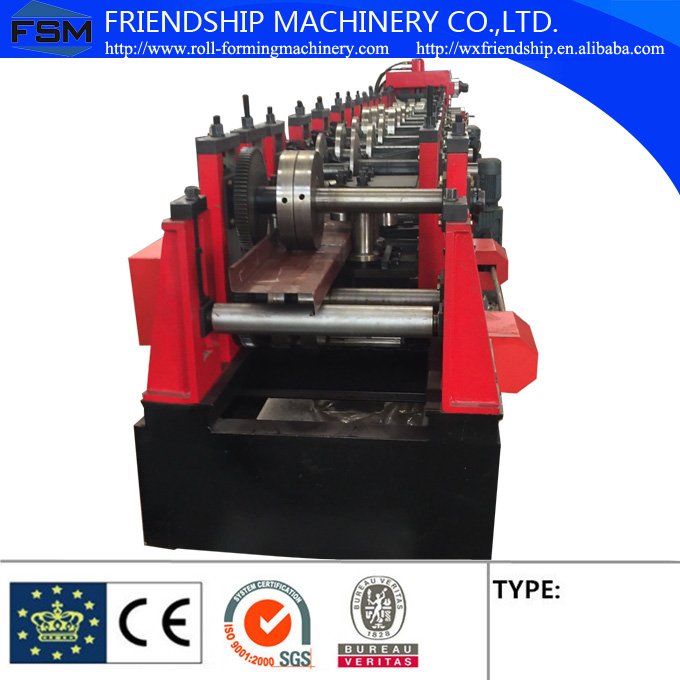

Changeable C Z Purlin Roll Forming Machinery , Automatic Change
size,PLC Operate
Main Technical Specification:
thickness: 1.5-3.0mm
speed: 15m/min
roll station: 18 stations (7 station for straighten)
main power: 19KW
hydraulic power: 5.5KW
control system: PLC Panasonic
Drive: by chain
Production Characteristic and use:
This kind of machine can produce C, Z two profiles, through the
exchange side of the roller up and down position to achieve C, Z
purlin conversion, just need about half an hour to achieve saving
time; This machine also can automatically adjust roller horizontal
distance to achieve C or Z purlins of the width with high
precision, but also save time to increase production
Detailed data of C purlin roll forming machine
| Item | Description |
| Material of roller : | GCr15,quenched |
| Material of shaft : | 45#forge steel |
| Material of punching mold : | Cr12 HR 58-62 |
| Material of cutting blade : | CR12 with heat treatment |
| Main power : | 15KW |
| Hydraulic power : | 5.5KW |
| Working speed : | 10-25m/min(not include cutting and punching) |
| Forming stations : | 14 stations |
| Control system : | PLC Panasonic |
| Transmission : | By Chain |
| Automaticity : | Semi-Automatic/Automatic |
| Main dimension(L,W,H) : | 11000mm*1400mm*1400mm |
| Total weight : | Abt 14000KG |
Main parts of c purlin roll forming machine
| NO. | Name | Unit | Qty |
| 1. | Roll Forming Main Machine | Set | 1 |
| 2. | Hydraulic/Manual decoiler | Set | 1 |
| 3. | PLC Control System | Set | 1 |
| 4. | Hydraulic Punching Device | Set | 1 |
| 5. | Hydraulic Cutting Device | Set | 1 |
| 6. | Hydraulic Station | Set | 1 |
| 7. | Manual Out Table | Set | 2 |
Procreative process
Decoiler→Feeding & Leveling→Roll Forming→Punching→Cut-to-length→Run
out table
Hydraulic decoiler
- Single head to put the coil hydraulic flow over device
- Coil spec:Φ508×1300mm
- Flow over range:Φ460-520mm
- Coil cylinder:Φ160×90mm
- Drive by hydraulic brake
- Capacity:5T,10T,20T
- Power:4KW cycloid motor
Manual decoiler
- Dimensions: 1700mm*1000mm*800mm
- Width of feeding: 600mm
- Capability: 5 Ton
- Bound of expand and fight: 450mm—510mm
- Mode of expand and fight: inner expand and fight by manual
- Way of feeding: manual
Drawing of profile
| C steel purlin size(mm) |
| model | H | B | C | T |
| C80 | 80 | 40 | 15 | 1.5-3.0 |
| C100 | 100 | 50 | 20 | 1.5-3.0 |
| C120 | 120 | 50 | 20 | 1.5-3.0 |
| C140 | 140 | 50 | 20 | 1.5-3.0 |
| C160 | 160 | 60 | 20 | 1.5-3.0 |
| C180 | 180 | 60 | 20 | 1.5-3.0 |
| C200 | 200 | 60 | 20 | 1.5-3.0 |
| C220 | 220 | 70 | 20 | 1.5-3.0 |
| C250 | 250 | 70 | 20 | 1.5-3.0 |
| C300 | 300 | 80 | 20 | 1.5-3.0 |
main features of machine
- We adopt the shape-steel structure and process as a whole after
welding.
- The machine has the ability of strong loading and stable operation
when running the machine.
- We adopt the automatic length-fixed forming and cutting to
guarantee the length to be
- precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing
in the factory.
- All the components of machine are from brand-famous enterprise so
that they ensure the machine normal function very effectively.
- The machine has features of low noise and high efficiency.
- We can produce the machine according to the customers' requirement
