    828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz

    Ask Lasest Price
    Brand Name : Friendship
    Certification : ISO
    Price : as per client requirements
    Delivery Time : 60days
    Payment Terms : T/T or LC
    Supply Ability : 5 sets per months
    Model Number : FSM-D12
    • Product Details
    • Company Profile

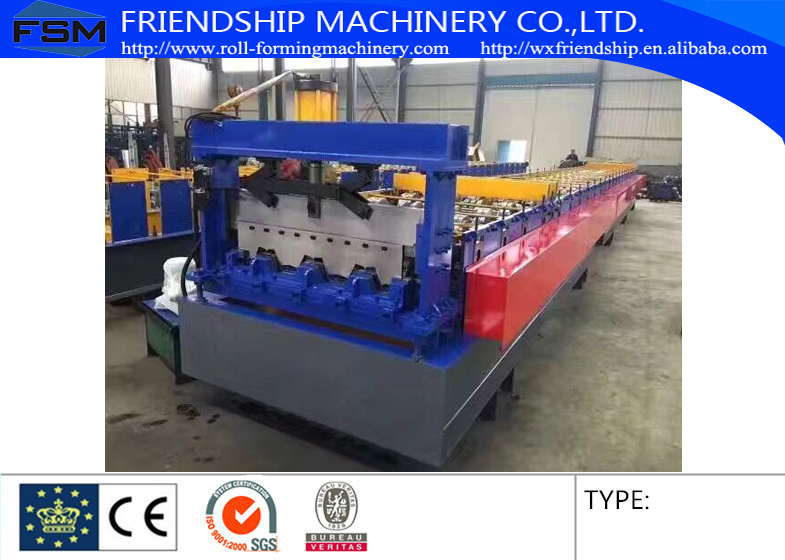

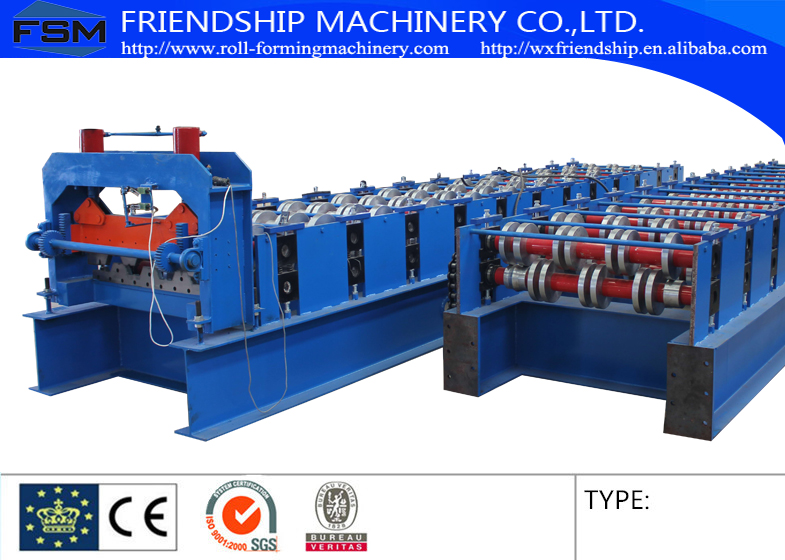

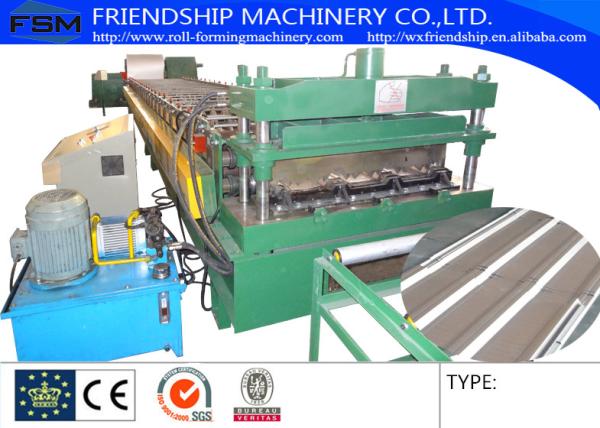

    828/1000mm Metal Deck Roll Forming Machine With 10T Hydraulic Decoiler Motor 15KW 3 Phase 50Hz

    Hydraulic Decoiler 10T Metal Roll Forming Machine

    With Motor Of 15KW 3 phase 50Hz

    Technical proposal:

    Name

    Item

    Specification

    Coil requested

    Material

    galvanized steel

    thickness

    0.8-1.2mm

    Tensile strength

    235-550Mpa

    Decoiler(1 unit)

    Type and weight capacity

    Manual decoiler, 10T

    Inner diameter

    498-508mm

    Outer diameter

    Max:1800mm

    Rollforming machine
    (1 unit)

    Rolling speed

    20m/min

    Motor

    11KW, 3phase, 60Hz, 380V

    Rolling step

    16

    Driving system

    Chain transmission

    Structure of machine body

    Entire wall steel structure

    Material of roller

    45# steel, chromed thickness0.05mm

    Diameter of shaft

    90mm

    Dimession

    Abt.9m*1.5m*1.1m

    Weight

    Abt.9T

    Electric control cabinet(1 unit)

    Main component

    PLC, frequency convertor,
    touching screen, encoder

    Cutting and length measurement

    Automatic

    Brand

    Panasonic from Japan,
    can be chosen by client

    Hydraulic station (1 unit)

    Power and strength

    5KW, 16Mpa

    Cutting machine(1 unit)

    Material of blade

    GCr12 mov steel,
    heatment and hardness up to
    HRC58-62

    Cutting type

    Hydraulic cutting

    Automatic stacker

    Size

    2m*7m*1.8m


    We, Wuxi Friendship Machinery Co., Ltd, China leading expert in designing and manufacturing metal sheet roll forming machines, automatic welding and cutting system. We achieve this by the most skilled, dedicated and diverse group of people in our industry.


    Our key products: C/Z/U purline forming line, PU sandwich panel line, steel silo production line, Culvert Corrugated pipe production line, roof/wall/deck/ forming machine and so on; H beam welding line, welding rotators and manipulator, positioner and so on.


    We insist on providing quality products and service at affordable price for our clients. The performance record of our products is the backbone of Friendship Machinery's reputation. The proven ability of every set machine is why customers have returned to us repeatedly for new applications, designs and machinery as their products change and expand. We are proud of it


    Our machines are well sold in South East and south Asia, Middle East, Africa, South America and East Europe, more than thirty countries.

    Warmly welcome to visit our factory and we are looking forward to cooperating with you for splendid future.
