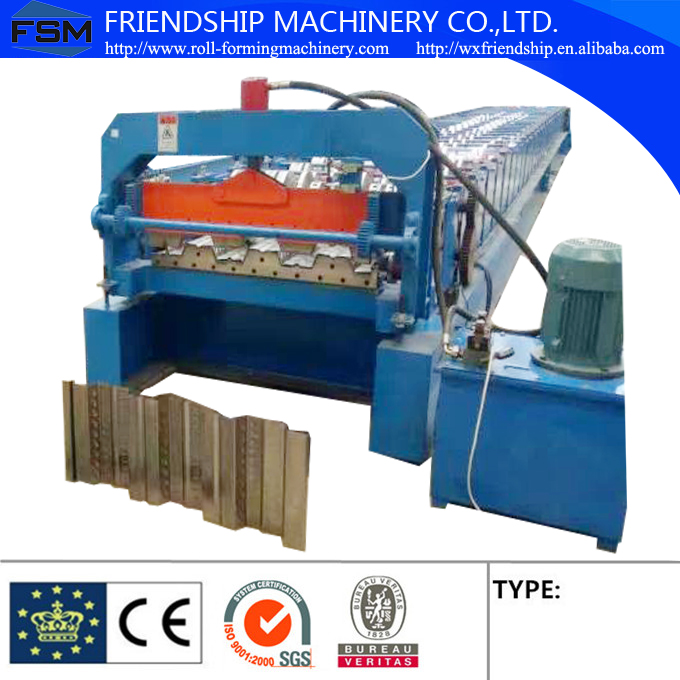

3 Phase Metal Deck Roll Forming Machine Galvanized Steel 11KW 380v 50Hz

    Buy cheap 3 Phase Metal Deck Roll Forming Machine Galvanized Steel 11KW 380v 50Hz from wholesalers

    Buy cheap 3 Phase Metal Deck Roll Forming Machine Galvanized Steel 11KW 380v 50Hz from wholesalers
    • Buy cheap 3 Phase Metal Deck Roll Forming Machine Galvanized Steel 11KW 380v 50Hz from wholesalers
    • Buy cheap 3 Phase Metal Deck Roll Forming Machine Galvanized Steel 11KW 380v 50Hz from wholesalers

    3 Phase Metal Deck Roll Forming Machine Galvanized Steel 11KW 380v 50Hz

    Ask Lasest Price
    Brand Name : Friendship
    Certification : ISO
    Price : as per client requirements
    Delivery Time : 60days
    Payment Terms : T/T or LC
    Supply Ability : 5 sets per months
    Model Number : YX51-250-750
    • Product Details
    • Company Profile

    3 Phase Metal Deck Roll Forming Machine Galvanized Steel 11KW 380v 50Hz

    3 Phase Metal Deck Roll Forming Machine Galvanized Steel With 11KW , 380v 50Hz

    Technical proposal:

    Name

    Item

    Specification

    Coil requested

    Material

    galvanized steel

    thickness

    1.5-2.5mm

    Tensile strength

    235-550Mpa

    Decoiler(1 unit)

    Type and weight capacity

    Manual decoiler, 10T

    Inner diameter

    498-508mm

    Outer diameter

    Max:1800mm

    Rollforming machine
    (1 unit)

    Rolling speed

    15m/min

    Motor

    11KW, 3phase, 60Hz, 380V

    Rolling step

    22-25

    Driving system

    Chain transmission

    Structure of machine body

    Entire wall steel structure

    Material of roller

    45# steel, chromed thickness0.05mm

    Diameter of shaft

    90mm

    Dimession

    Abt.11m*1.5m*1.2m

    Weight

    Abt.13T

    Electric control cabinet(1 unit)

    Main component

    PLC, frequency convertor, touching screen,
    encoder

    Cutting and length
    measurement

    Automatic

    Brand

    Panasonic from Japan, can be
    chosen by client

    Hydraulic station (1 unit)

    Power and strength

    5KW, 16Mpa

    Cutting machine(1 unit)

    Material of blade

    GCr12 mov steel, heatment
    and hardness
    up to HRC58-62

    Cutting type

    Hydraulic cutting

    Run out table

    Size

    1.2m*0.7m*1m*4m


    More Pics:
