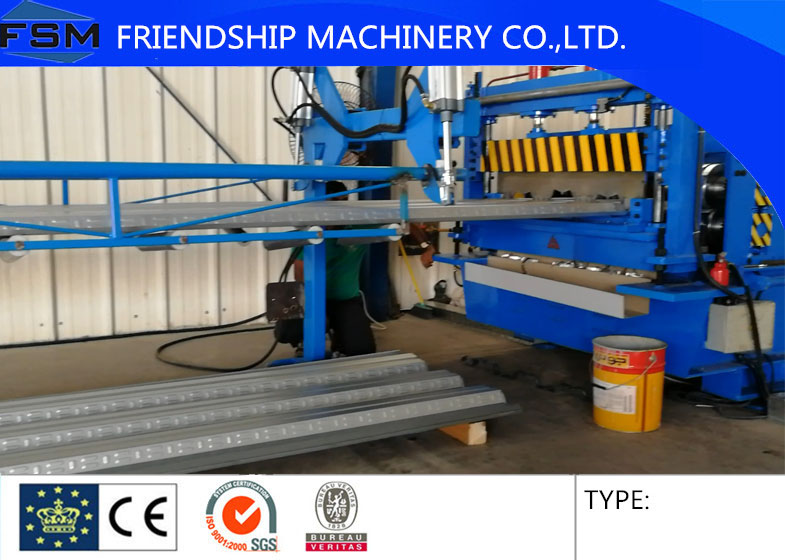

1.5 MM GI Metal Deck Roll Forming Machine With 28 Forming Stations And Automatic Stacker And Safety protective cover

1.5MM GI Metal Deck Roll Forming Machine With 28 Stations
With Auotmatic Stacker and protective cover

Technical proposal:

Name	Item	Specification
Coil requested	Material	galvanized steel
	thickness	1.5mm
	Tensile strength	550Mpa
Decoiler(1 unit)	Type and weight capacity	Hydraulic decoiler, 10T
	Inner diameter	498-508mm
	Outer diameter	Max:1800mm
Rollforming machine (1 unit)	Rolling speed	15m/min
	Motor	15KW, 3phase, 60Hz, 380V
	Rolling step	28
	Driving system	Chain transmission
	Structure of machine body	Entire wall steel structure
	Material of roller	45# steel, chromed thickness0.05mm
	Diameter of shaft	90mm
	Dimession	Abt.10m1.5m1.1m
	Weight	Abt.15T
Electric control cabinet(1 unit)	Main component	PLC, frequency convertor, touching screen, encoder
	Cutting and length measurement	Automatic
	Brand	Panasonic from Japan, can be chosen by client
Hydraulic station (1 unit)	Power and strength	5KW, 16Mpa
Cutting machine(1 unit)	Material of blade	GCr12 mov steel, heatment and hardness up to HRC58-62
	Cutting type	Hydraulic cutting
Run out table	Size	1.2m0.7m1m*4

Applications:

The finished floor decking panels are widely used in power plants, factories, warehouse, office, airport
terminals, railway stations, stadiums, supermarkets, logistic centers and other steel structure constructions.
