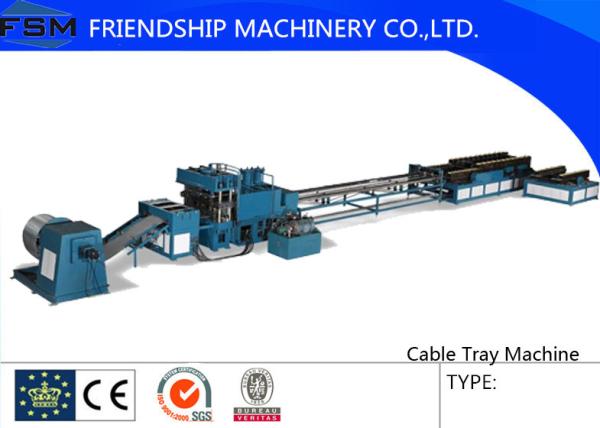

Side Rail Machine Cable Tray Roll Forming Equipment

With Two Production Line

Introduction of machine

• The roller is :Gcr 12 bearing steel(not gcr15,not 45#steel).the rollers hardness is more stronger .hot dip :(lathe,quench,finish turning ).This material has no wear in5,000,000 meters.
• The base frame of machine is adopted to big gantry milling ,make sure that have a effective and accuracy product Notice :it is an important techniques.
• The forming station is covered by the chrome-plated (other supplier’s paint) to resist the corrosion ,the firm thickness and the chrome-plated can guarantee the machine has a longer life! The big strong nut ,and chrome-plated too!Has a long life to use .
• When you adjustment the size , you just need to see the scale ,then will know it standard or not . It can save time and be convenient when adjust .
• The oil filler:When the machine maintaining,you just need pour the oil into the hole,do not take them down.save a lots time and tidy.
• Using the worm gear box (not chain)to convey the machine :guarantee that a more steady and more precision working .the keep the gear box has the oil ,then have a at least 20 years .It is more safety to work ,too.
• The surface is covered by the 0.15 mm chrome plated.in order to prevent rust between the roller and axel .

Quick Details

Our advantage of machine

• Lower cost
• High efficiency
• Reliable working
• Low energy consumption

Machine parts list

Technique data

Machine layout

Decoiler-Leveling-Servofeeding-Punching-Feedingwithguide-Roll forming-Cutting-Outtable

Pictures of machine

Introduction of company

We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.

We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.

Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
