Mild Steel And Galvanized Strip Coil Cable Tray Roll Forming Machine

With 10-15m/min

Introduction of machine

• Thickness of material :1-2.5mm
• Forming speed:10-15m/min
• Total power:15KW
• Driven type:by Gear
• Control system:PLC control
• De-coiler type:Automactic
• Hydraulic cutting system is controlled by computer
• The machine will be operated by the auto PLC controlling system, which makes the operation more convenience to be controlled.
• The profile will be pre-punched then be roll formed, that’s the big different with the traditional production ,which is faster and more safety than the traditional one.
• Producing different specification can be finished by changing the die, and the bending machine

Technical Specification

Main feacture

• Our company adopt advanced roll forming processing technology that roll forming after the preliminary punching to improve production speed .
• The whole line adopting full auto PLC controlling system ,making the operation more convenience.
• Producing different specification can be finished by changing the die, and the bending machine.

The forming flow chart

Auto-decoiling--Leveling--Feeding(servo motor)--Punching/cutting--Coiling---Roll forming--Out table

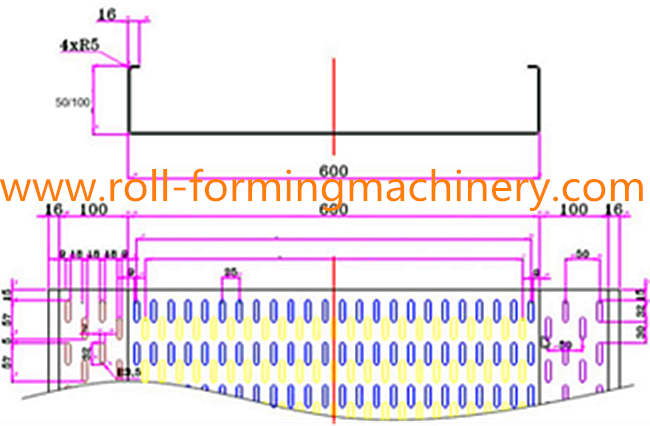

The profile drawing



Introduction of company

We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.

We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.

Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
