    GI 1 MM Thickness Box Beam Roll Forming Machinery For Making The Shelf Beam


    Box Beam Roll forming machine


    Ⅰ:Composition of machine

    Roll forming main machine……………………………1 unit

    5T manual uncoiler........................…………………….1 unit

    Control panel…………………………………………..1 unit

    Hydraulic station…………………………………… …1 unit

    Manual out table……………………… ……………….1 unit

    Joint together part……………………… ……………1 unit


    : Details of each composition

    A: Roll forming main machine


    Feeding width200 - 400mm ( according drawing )
    working speed10m/min (not contain punching and cutting)
    roll station15 stations
    material of rollerGCr15, CNC lathes, hard Chrome Coated
    :material of main shaft45﹟steel diameter roller: Ф65mm

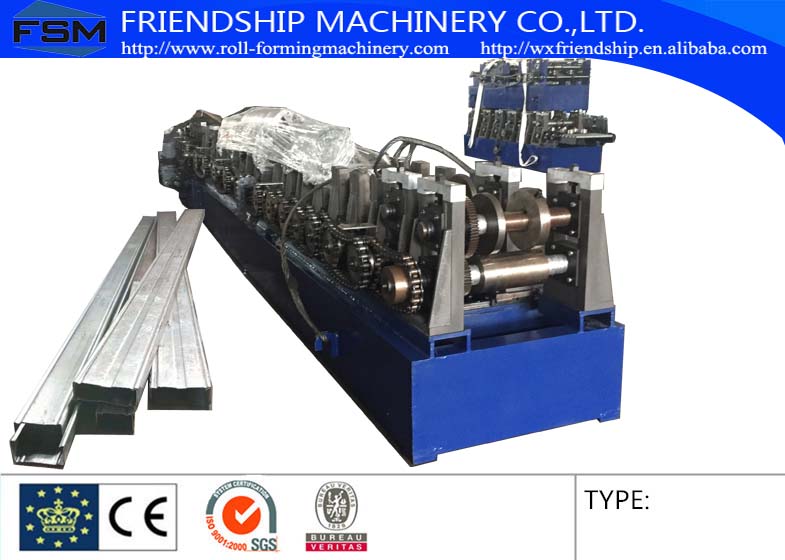

    Sample photo for reference:

    6: main power: 11KW

    7: forming thickness: 1.2-2 mm, galvanized steel

    8: Transmission: by Chains

    9: feeding and guide: feeding motor 2.2kw

    10: size of machine: about 10500x1000x1500(mm)-----for main machine L x W x H

    need 1x40GP container

    11: weight: about 5000Kgs

    12: color of machine: blue and yellow

    13: Punching and Cutting:

    (1) punching mold: Cr12 HRC 58-62

    (2) machine with 5 sets punching system according to punching drawing

    (3) Punching with hydraulic drive

    (4) punching at end-wise controlled by PLC control system

    (5) Hydraulic Cutting after forming: Cut the sheet after roll forming to required length

    (6) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

    (7) Material of blade: CR12with heat treatment

    (8) Length measuring: Automatic length measuring

    (9) Tolerance of length: 3m+/- 1.5mm

    14. Uncoiler

    Dimensions: 1700mm*1000mm*800mm

    Width of feeding: 600mm

    Capability: 5 Ton

    Bound of expand &fight: 450mm—510mm

    Mode of expand &fight: inner expand &fight by manual

    Way of feeding: manual

    C: Control panel PLC Panasonic

    (1) Voltage, Frequency, and Phase: Machine need to accept 380V/3Ph/60Hz

    (2) Automatic length measurement:

    (3) Automatic quantity measurement

    (4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

    (5) Length inaccuracy can be amended easily.

    (6). Control panel: Button-type switch and touch screen

    (7) Unit of length: millimeter (switched on the control panel)

    D: Hydraulic station

    1: hydraulic station power: 7.5kw

    E: manual out table:


    Character of main structure

    Main features and components of the machine

    1,main features

    a. the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

    b.All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

    c. we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

    d. it is very easy to install the equipment and suitable for producing in the factory.

    e. the machine has features of low noise and high efficiency.

    Technological process

    Decoiling—feeding and guide—leveling---pre cut---pre punching----roll forming—---post punching-----hydraulic cutting—product output

    Profile:(Basis on customer’s require to design)

    The external of machine: (exactly should be sending to customer in 20 days after confirm order)

    Terms of payment: 30%T/T 70% pay before shipment.

    Deliver time: 75 days after get 30% down payment

    Warranty: 1 year warranty from date of shipment

    Guarantee:

    1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.

    2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

    - Damage occurs due to a natural disaster

    - Malfunction occurs due to user error

    - Malfunction occurs due to modifications

    - Malfunction occurs due to further movement or shipment after installation

    3:Air ticket, transportation cost, hotel, meals and 60$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
