Automatic C Z Purlin Roll Forming Machine Interchangeable , Q195 - 235

Main Specifications of C & Z Purlin Roll Forming Machine

• Purlin specifications:

For C purlin: width: 80-350mm height: 40-80mm, small rib: 14-25mm

For Z purlin: width :80-350mm height: 40-80mm, small rib: 14-25mm

• Material of roller and main shaft: GCr15, quenched ;45# steel
• Coil thickness:1.2-3.5mm Q195~235, zinc coils & Hot Rolled coils
• Forming roller: 17steps
• Leveling roller:5steps (up 2 and down 3)
• Feeding & guiding: 2 sets ,4 rollers
• Landscape orientation adjustment range of Hole distance : 45-500mm
• Main power: 15KW Hydraulic power: 7.5 KW

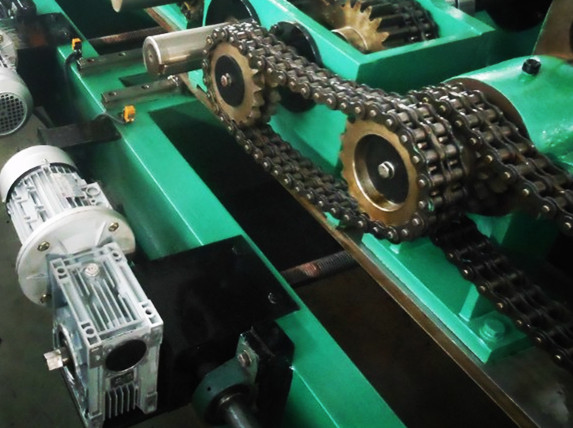

• Transmission: Transmission by Chains 1.2Inch double line
• Main dimension: 11000(L) x 1400(W) x 1400mm(H) (including main motor)
• Total weight of machine:about 14000kg
• One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers.
• We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
• It is quick easy to operate the machine, and the machine has features of low noise and high efficiency , forming speed up to 25m/min.

Composition of machine

• Hydraulic/Manual Decoiler…………………………1 unit
• Roll forming main machine…………………………1 unit
• Straightening................................................................1unit
• Hydraulic station…………………………………… ....1unit
• Hydraulic Punching & Cutting........................................1unit
• PLC computer control ...................................................1Unit
• Manual out table……………………… ……………….2 unit

Noted:All the parameters can be changed as the customer's requirement.

The External Of Machine

Profile Of The C&Z For Reference

Our Advantage

• High Quality
• Durable
• All Compositions Of Machine Come From Brand-famous Enterprise
• Easy To Install The Equipmen
• Reasonable In Price
• Good After Service
• 1 Year Warranty From Date Of Shipment

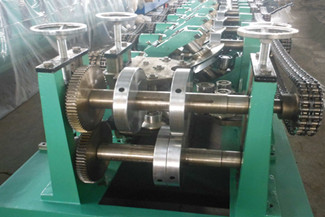

Some Pictures Of Machine

Enterprises Introduction

We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.

We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.

Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
