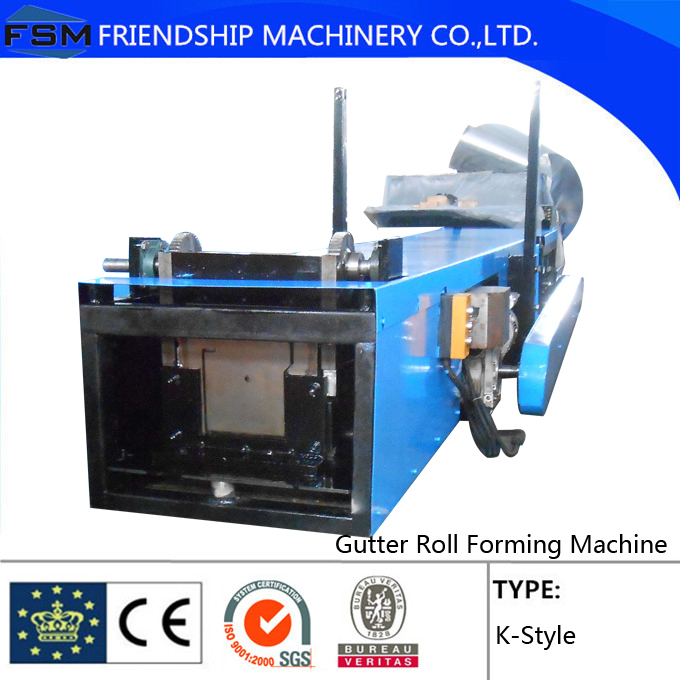

Round / K-type / Box Gutter Roll Forming Machine For Water Pipe

High Quality Round/K-type/box Gutter Roll Forming Machine For Downspout/Rain Spout/Water Pipe

Parameter of Gutter Forming Machine

· Main motor power: 7.5Kw

· Number of forming station: About 20

· Forming speed of round downspout roll forming machine: 12m/min

· Voltage: 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )

· Dimension of machine: Abt. 12000mm*1100mm*1200mm

· Machine wight: abt. 12 Ton

· Material of Axis: High grade 45# steel

· Diameter of Axis: φ75mm

· Material of Roller: High grade 45#, polished and coated with 0.05mm Chrome Surface.

· Material of Machine Frame: A3 Steel, thickness 18mm

· Electrical Control: PLC Frequency Control System with touch screen

· PLC: PANASONIC Brand

· Encoder: OMRON Brand

· Frequency convertor: PANASONIC Brand

Thickness of Materials Formed

o Steel – 0.3mm to 0.6mm

o Aluminum – 0.5 to 0.8mm

o Copper – 0.5-0.7mm

Gutter Profile Drawing

Main Component

Cantilever decoiler----------------------------------------------------------1 unit

Feeding machine------------------------------------------------------------1 unit

Roll Forming machine-------------------------------------------------------1 unit

Cutting machine------------------------------------------------------------1 unit

Hydraulic station-----------------------------------------------------------1 unit

Electric control cabinet------------------------------------------------------1 unit

Encoder--------------------------------------------------------------------1 unit

Run out table--------------------------------------------------------------1 unit

Main Features Of The Machine

• The structure is simple and the appearance of the machine is beautiful because we
• adopt the shape-steel structure and process as a whole after welding. It has the
• ability of strong loading and stable operation when running the machine.
• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• It is very easy to install the equipment and suitable for producing in the factory.
• The machine has features of low noise and high efficiency.

Working Flow

Passive decoiler---- feeding & guiding---- roll forming--- straightening-- hydraulic cutting---run out table

Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service

Introduction

We, Friendship Machinery Co., Ltd, attaches great importance on technology innovation, progress has been made on scientific management as well as Co., culture. China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.

We invest more on developing roll forming machine such as Metal roof & wall panels machines, C&Z purlin machines drywall Stud-track forming machines,Metal decks machines, No-girder and Column curves forming machine, Guard rails forming machines, Downspout pipes forming machines and so on. With fast development, very short period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.

EXCELLENT QUALITY AND COMPETITIVE PRICE !

CHOOSE US , CHOOSE THE BEST !

Thank you for your time !

We, Wuxi Friendship Machinery Co., Ltd, China leading expert in designing and manufacturing metal sheet roll forming machines, PU sandwich panel line. We achieve this by the most skilled, dedicated and diverse group of people in our industry.

Our key products: C/Z/U purline forming line, PU sandwich panel line, steel silo production line, Culvert Corrugated pipe production line, roof/tile/wall/deck/ forming machine, double layers forming machine, drywall stud and track roll forming machine, guardrail roll forming machine, downspout roll forming machine, gutter roll forming machine, simple slitting and cut to length machine, CNC folder/flashing machine, K span forming line, hydraulic decoiler, auto stacker and so on.

We insist on providing quality products and service at affordable price for our clients. The performance record of our products is the backbone of Friendship Machinery's reputation. The proven ability of every set machine is why customers have returned to us repeatedly for new applications, designs and machinery as their products change and expand. We are proud of it

Our machines are well sold in South East and south Asia, Middle East, Africa, South America and East Europe, more than thirty countries.

Warmly welcome to visit our factory and we are looking forward to cooperating with you for splendid future.
