Gearbox Driven C Z Purlin Roll Forming Machine

Use Hydraulic Pre Punching 3mm Thickness

Ⅰ:Composition of machine

Roll forming main machine…………………………….1 unit

Control panel……………………………………………1 unit

Hydraulic station…………………………………… ….1 unit

Out table…………………………………………………1unit

Spare tools……………………………………………...one box

Ⅱ: Details of each composition

A: Roll forming main machine

1: Coil width: 160mm, 190mm

2: working speed: 50m—60m/min (not contain cutting and punching)

3: roll station: 11stations+7 rollers for leveling+ 3 stations for straightened

4: material of roller: 45＃forge steel, polished and coated with chrome

5:material of main shaft:45﹟forge steel diameter roller: Ф56mm

6: main power: 7.5kw drive Brand: GuoMao

7: forming thickness: 0.4mm—1.0mm color steel and galvanized steel 350Mpa-550Mpa

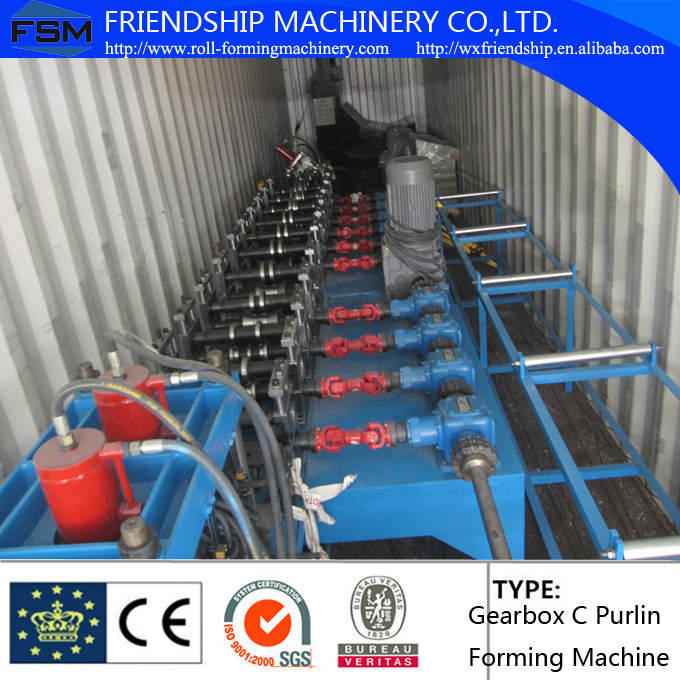

8: Transmission: by gear box Brand of Gear Box: SEW

9: punching

• Machine adopt hydraulic pre-punching
• Punching stations: 2
• Punching distance is adjustable by computer
• Punching or not punching is base on customer request
• Punching mould: Cr12, HRC58-62°

10: size of machine (roll forming part): 9500x1500x1000(mm) L x W x H

11: weight: about 5000Kgs

12: color of machine: blue and yellow

13: Cutting:

1. Machine adopt air cylinder press track cutting, straight track move
2. air cylinder press track cutting photo

(2) Cutting after forming: Cut the sheet after roll forming to required length

(3) Cutting motion: The main machine non-stop

(4) Material of blade: CR12with heat treatment 2 sets

(5) Length measuring: Automatic length measuring

(6) Tolerance of length: 10m+/- 2mm

(7)Cutting accuracy cutting on the fly, Must be repeatable All hydraulic, electric, pneumatic replacement components avail in Australia

Technical parameters

Components of line

Noted:All the parameters can be changed as the customer's requirement.

Features of the production line

• This kind of machine can produce C,Z two profiles,through the exchange side of the roller up and
• down position to achieve saving time.
• In the process, machine adopt automactic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
• Customers decide the profile of products.
• Saving time and cost owing to high speed running with hydraulic system.
• One year warranty.
