Hydraulic Cutting C Z Purlin Roll Forming Machines
80mm - 350mm , Z Steel Purlins
Main technical Specification of machine
- Profile :z purlin
- Type :steel strip
- Material Thickness:1.2-3.5mm
- Working speed:15m/min(not include punching and cutting time)
- Roll station: 18 stations
- Roller material :GCr15,quenched
- Type of roller driven:motor or hydraulic
- Control of machine:PLC Panasonic
- Main power:15 KW
- Hydraulic power:7.5 KW
- Hydraulic punching and cutting
- Transmission :transmission by gearbox
- This machine adopt PLC control system,the size of Z purlin height
and weight can be adjusted through the Panel touch.
Details data of roll forming main machine
NO. | Item | Parameters |
1 | Purlin specifications | 80-350mm(width),40-80mm(height),14-25mm(small rib) |
2 | Coil thickness | 1.2-3.5mm Q195~235,zinc coils and hot rolled coils |
3 | Forming speed | 0-15m/min(not include punching and cutting) |
4 | Forming roller | 18 steps |
5 | Leveling roller | Five steps |
6 | Rectifying | One step |
7 | Feeding and guiding | Two sets, four rollers |
8 | Material of roller | GCr15,quenched |
9 | Material of main shaft | 45# steel |
10 | Main motor | 15KW |
11 | Feeding&leveling motor power | 7.5KW |
12 | Hydraulic power | 7.5KW |
13 | Hydraulic pressure | 15-20MPa |
14 | Transmission | By gearbox |
15 | Main dimension | 11000mm*1400mm*1400mm(L,W,H) |
16 | Total weight | 14000KG |
Composition of machine
- Roll forming main machine…………………………1 unit
- Hydraulic/Manual decoiler…………………………..1 unit
- Hydraulic punching.................................1 unit
- Hydraulic cutting....................................1 unit
- Control panel………………………………………….....1 unit
- Hydraulic station…………………………………….....1 unit
- Manual out table……………………… ……………....2 unit
Punching and Cutting device
- Punching mold: Cr12 HRC 58-62
- Machine with 3 sets punching system
- Punching with hydraulic drive
- Punching in longitude wise controlled by PLC, punching at
horizontal wise adjusted by manual hand wheel.
- Punch details as shown in drawing.
- Hydraulic Cutting before forming:Cut the sheet before roll forming
to required length.
- Cutting motion:The main machine not stop and the continue punching
and cutting .
- Material of blade: CR12with heat treatment
- Length measuring: Automatic length measuring
- Tolerance of length: 3m+/- 1.5mm
Advantages of machine
- The auto-Z purlin roll forming machine is designed for the Z shape
purlin.
- Z purlin roll forming machine adopt new station to increase the
firmness of the machine.
- The machine adopt gearbox transmission to ensure machine working
more stable.
- Machine adopt after-cutting to ensure quality of the cutting.
- Products are widely used in steel structure building.
- Guaranteed against malfunctions due to manufacturing defects for 1
year after date of purchase.

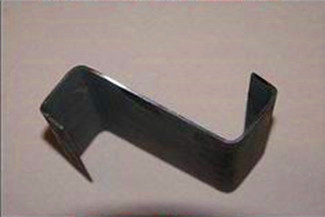

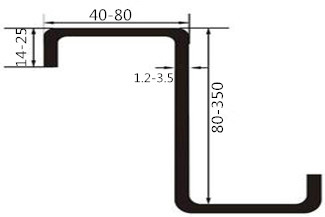

Profile of Z for reference

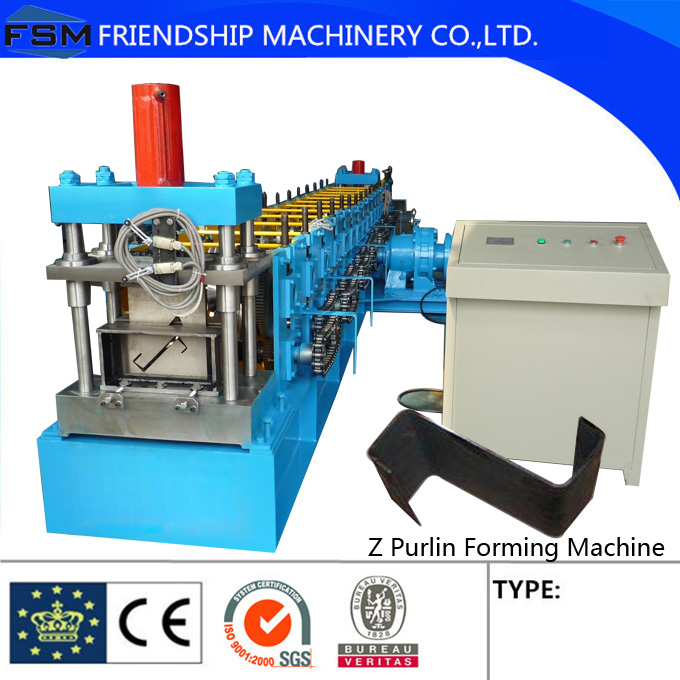

Some pictures of machine
Introduction of company
We, Friendshachinery Co., Ltd, attaches great importance on
technology innovation,progress has been made on scientific
management as well as Co.,culture.Our manin products: Metal roof
&wall panels machines, C&Z purlin machines drywall
Stud-track forming machine,Metal decks machines,No- girder and
Column curves forming machines,Guard rails forming
machine,Downspout pipes forming machines and so on.
We can customize forming machine according to user's
requirements.And we can provide professinal service,high
quality,through design,and installation.
Warmly welcome to visit our factory no matter you are distibuters
or end-users,and looking forward to cooperating with you for mutual
benefits.
