Hydraulic color Steel Roof Bending Metal Forming Machinery suit for 0.4 - 0.8mm thickness

Quick Detail:

Hydraulic power:5.5KW

Control system: PLC Panasonic

Dimension of machine:3000 mm×1400 mm×1400 mm

Main Specification:

1. Main power:0.85KW servo motor

2. Hydraulic power:5.5KW

3. Roll speed:0—10m/min

4. Specification of material:0.25—0.8 mm

5. Press material:CR12 HRC55-60 surface with chrome

6. Control system: PLC Panasonic

7. Dimension of machine:3000 mm×1400 mm×1400 mm

8, the max bending angle:1200

9, width of the sheet: Design base on YX35-200-1000 roofing profile

10, This machine need to profile obverse and inverse profile, so need two mold.

Main Features:

a, the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.

b. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c, we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d: it is very easy to install the equipment and suitable for producing in the factory.

e: the machine has features of low noise and high efficiency.

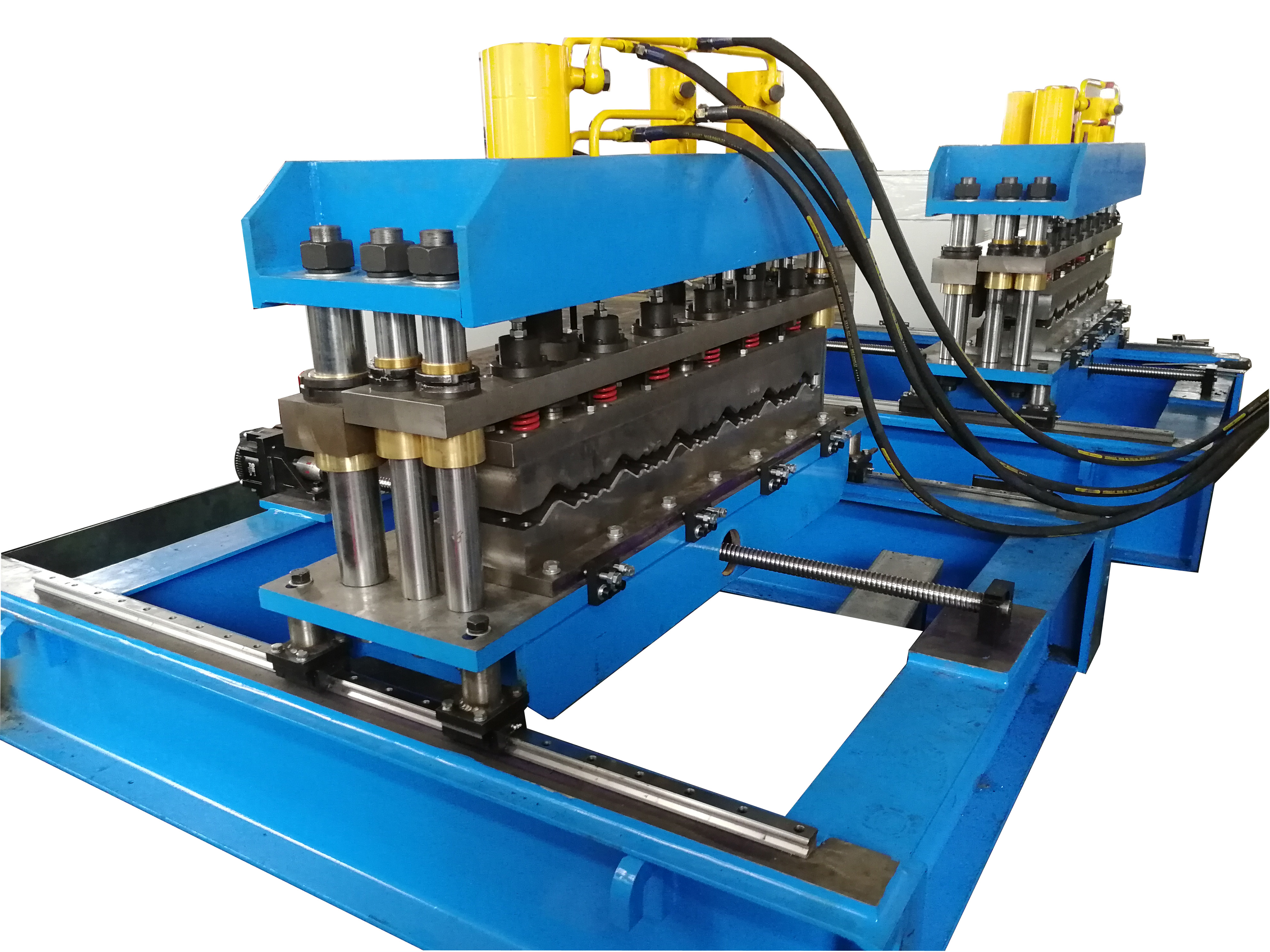

Main Picture:

Contact Us

For more information, feel free to contact with us.

We, Wuxi Friendship Machinery Co., Ltd, China leading expert in designing and manufacturing metal sheet roll forming machines, PU sandwich panel line. We achieve this by the most skilled, dedicated and diverse group of people in our industry.

Our key products: C/Z/U purline forming line, PU sandwich panel line, steel silo production line, Culvert Corrugated pipe production line, roof/tile/wall/deck/ forming machine, double layers forming machine, drywall stud and track roll forming machine, guardrail roll forming machine, downspout roll forming machine, gutter roll forming machine, simple slitting and cut to length machine, CNC folder/flashing machine, K span forming line, hydraulic decoiler, auto stacker and so on.

We insist on providing quality products and service at affordable price for our clients. The performance record of our products is the backbone of Friendship Machinery's reputation. The proven ability of every set machine is why customers have returned to us repeatedly for new applications, designs and machinery as their products change and expand. We are proud of it

Our machines are well sold in South East and south Asia, Middle East, Africa, South America and East Europe, more than thirty countries.

Warmly welcome to visit our factory and we are looking forward to cooperating with you for splendid future.
