Steel Color Roof Bending Metal Forming Machinery

with Color Steel Panel

Quick Detail:

Hydraulic power:5.5KW

Control system: PLC Panasonic

Dimension of machine:3000 mm×1400 mm×1400 mm

Main Specification:

1.Main power:0.85KW servo motor

2.Hydraulic power:5.5KW

3.Roll speed:0—10m/min

4.Specification of material:0.25—0.8 mm

5.Press material:CR12 HRC55-60 surface with chrome

6.Control system: PLC Panasonic

7. Dimension of machine:3000 mm×1400 mm×1400 mm

8, the max bending angle:1200

9, width of the sheet: Design base on YX35-200-1000 roofing profile

10, This machine need to profile obverse and inverse profile, so need two mold.

Main Features:

a,the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.

b．All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c,we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d: it is very easy to install the equipment and suitable for producing in the factory.

e: the machine has features of low noise and high efficiency.

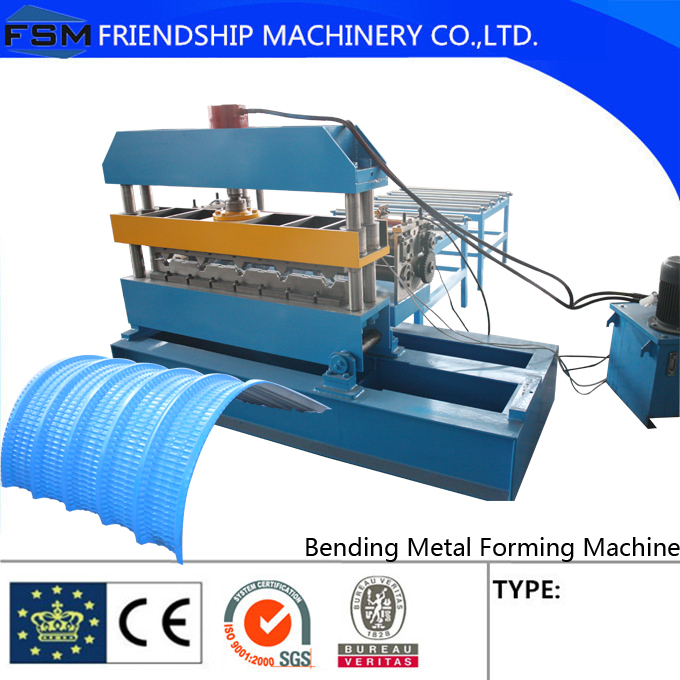

Main Picture:
