610 No-girder Metal Forming Machinery Single Row Chain , 12Mpa Pressure

Main Data

1: raw material (mm): 914mm effective width: 610mm
2: working speed: 12m—15m/min (not contain cutting)
3: roll station: 17 stations
4: material of roller: 45# forge steel, polished and coated with chrome
5:material of main shaft:45﹟forge steel Ф80mm
6: main power: 7.5kw
7: hydraulic station power: 4kw
8: Hydraulic pressure: 12Mpa
9: control system: PLC, Panasonic
10: material of cutting: SKD11
11: Thickness:0.8—1.2mm
12: way of drive: single row of chain: 1.5 inch
ATTENTION: complete in include one set of main machine, one set of curving machine and one set of auto seaming machine.

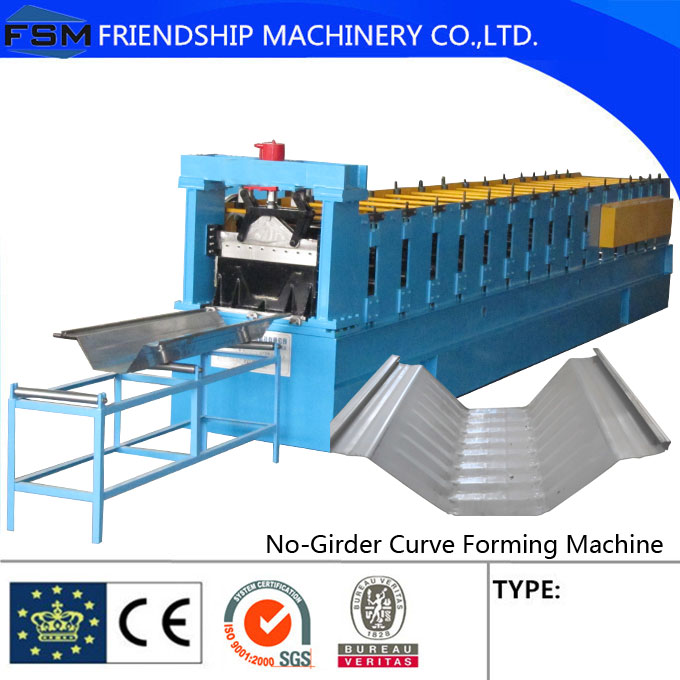

Main Picture
