Heat Treatment Cutting Blade Roof Roll Forming Machinery

With Cr45 Steel Roller

Introduction of machine

• Coil width: base on profile
• effective width: 914mm
• Working speed: 30m/min (not contain cutting)
• Forming thickness:0.3mm—0.8mm color steel and galvanized steel
• Hydraulic station power: 5.5kw
• Hydraulic pressure: 12Mpa
• The structure is simple and the appearance of the Wall/Roof roll forming machine is beautiful because we adopt the shape-steel structure and process as a whole after welding.
• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
• It is very easy to install the equipment and suitable for producing in the factory.
• The machine has features of low noise and high efficiency.

Composition of machine

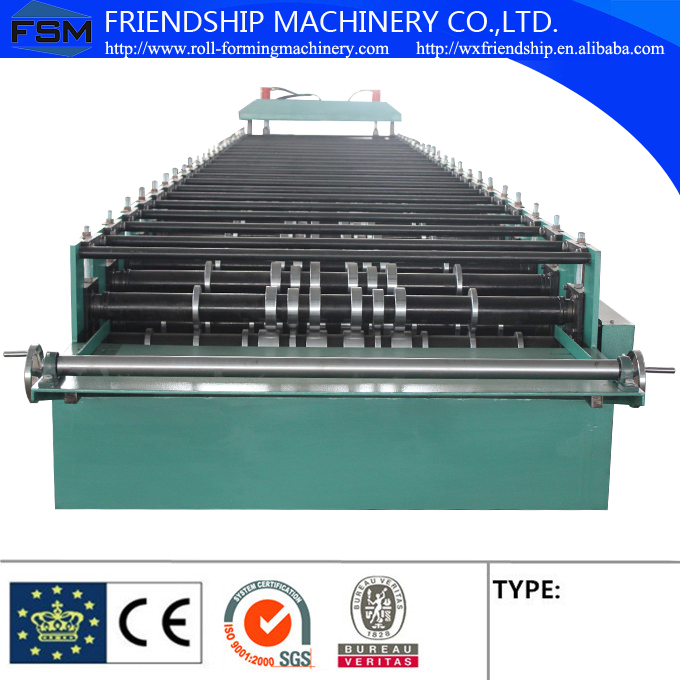

Roll forming main machine

• Roll station: 18stations
• Material of roller: Cr45 steel, polished and coated with chrome
• Material of main shaft:45﹟forge steel diameter roller: Ф 85mm
• Main power: 7.5KW machine
• Transmission: by single Chains 1.2 inch
• Feeding and guide: surface polished and coated with chrome
• Machine adopt protect cover
• Machine adopt new station with chrome (at the up of each station have dial)
• Size of machine:10000x1600x1200(mm) L x W x H need 1x40GP container
• Weight: about 6500Kgs
• Color of machine: blue
• Machine should be with four legs (made from metal) in 350mm
• Motorized Pre-cutting: It is used when changing the coil of raw material; it can
• Cut the coil rapidly and time-saving.
• Cutting:

(1) Motorized Pre-cutting: It is used when changing the coil of raw material; it can

cut the coil rapidly and time-saving.

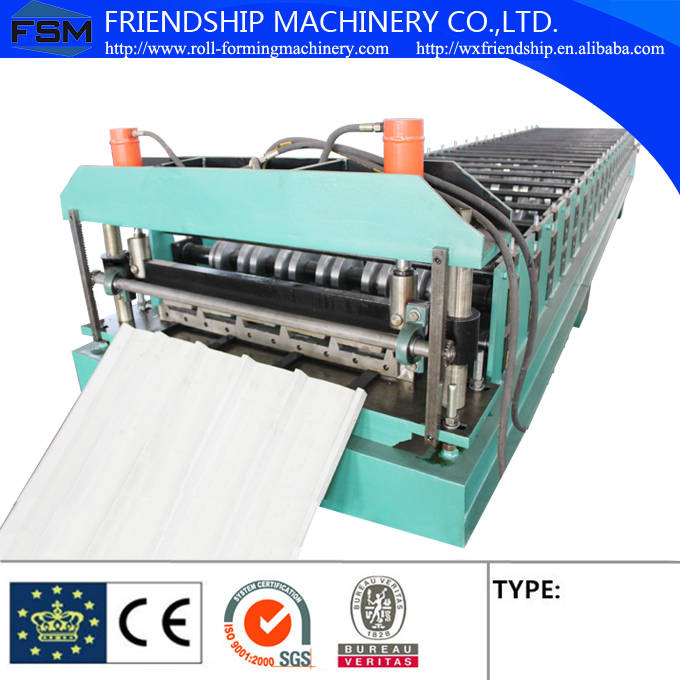

(2) Hydraulic Cutting after forming: Cut the sheet after roll forming to required
length
(3) Cutting motion: The main machine automatically stops and the cutting will take
place. After the cutting, the main machine will automatically start.
(4) Material of blade: CR12with heat treatment
(5) Length measuring: Automatic length measuring
(6) Tolerance of length: 3m+/- 1.5mm

Manual and hydraulic de-coiler

Control panel Panasonic

• Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
• Automatic length measurement
• Automatic quantity measurement
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• Length inaccuracy can be amended easily.
• Control panel: Button-type switch and touch screen
• Unit of length: millimeter (switched on the control panel)

Technological process

Decoiling—feeding—guide---roll forming----cut to length—product packing manual

Introduction of company

We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.

We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.

Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
