    45 # Steel And HRC 58 - 62 K Span Roll Forming Machinery With Vechicle

    Ask Lasest Price
    Brand Name : Friendship
    Certification : ISO
    Delivery Time : 15 working days
    Payment Terms : T/T or LC
    Supply Ability : 100 sets per month
    • Product Details
    • Company Profile

    45 # Steel And HRC 58 - 62 K Span Roll Forming Machinery With Vechicle


    45 # Steel And HRC 58 - 62 K Span Roll Forming Machine With Vechicle


    Features of machine


    • All the rollers are forged form the high quality structural steel and are processed intensely. The surfaces of the rollers are plated with hard chromium. The rollers have a high hardness and long operating life.
    • The power set to automatically transport the colored steel sheet is equipped in the forming press section which can press the colored steel sheet with the thickness of 0.6-2.5mm. It is not needed to frequently adjust the clearance between the pressing rolls when pressing the sheet with different thickness which can make the sheet come out from machine is very simple. But the quality of the finished product can be guaranteed.
    • The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument .The helping hand wheel and the counter are used in the adjustment of the bending of arch sheet ,which makes the operation simple and guarantees the quality and the dimensional precision.

    Main technical parameter


    ItemDescription
    Size9000mm × 2250mm × 2300mm
    Total Weightabout 23000KG
    Main Motor Power39KW
    Forming power15kw
    Bending power10kw
    Cutting power10kw
    Conical power4.0kw
    Working Speed

    Straight sheet: 15m/min
    Arch sheet: 13m/min
    Sewing: 6m/min
    Material of rollers45# steel, quenched HRC 58-62
    Material of roller shafts45# steel, quenched HRC 58-62
    Dia of shaft90mm
    Material of cutting bladeCr12 steel (Taiwan Airline Technique)
    PLC TypeOMRON JAPAN BRAND
    Step of rollers14 steps
    Feeding Width914mm
    Effective Width610mm
    Thickness of the coil0.6-2.5mm
    Gear/Spoket driving14 stations to form
    Electric Standard380V / 50 HZ / 3 PHASE
    Type of cuttingRoll-formed and length-set cutting
    Ship Container40HC x 1
    Operating factor of the panel66%
    Proper span≤40m
    Bending leaf30mm stainless
    Side frame thickness35mm

    Main component


    NO.NameUnitQty
    1Manual decoiler7TSet1
    2Roll forming machine(including curving machine)Set1
    3Electric control cabinetSet1
    4Run out tableSet1

    Working flow


    Uncolier----Feeding and straight---- Rollforming-Hydraulic cutting -----Mechanisim curving----Sealing

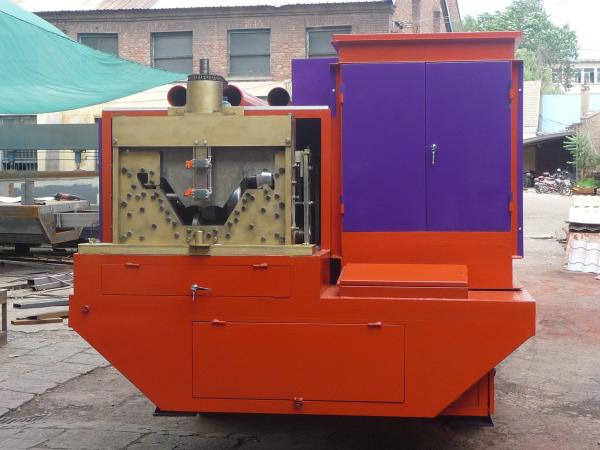

    Pictures of machine
