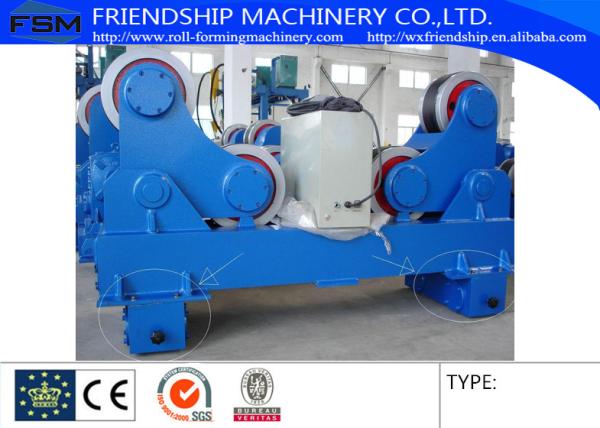

Adjustable Welding Rotators Positioners CE ISO9000 Approval

Specifications

Welding rotator is mainly used to weld,burnish,assemble the cylinder vessel.It includes self-aligining rotators,conventional rotators,trollery rotators,traverses type rotators.

Main technical Parameter

Model	Max Load Capacityt)	Vessel Diameter Range(mm)	Diameter Width of Roller(mm)		Adjustable Model	Motor Power (kw)	Roller Speed(m/min)
			Rubber	Metal
HGK5	5	250-2300	250×100	/	Adjust by mannual lead screw or bolt	2×0.37	0.1-1 Variable Frequence Drive
HGK10	10	320-2800	300×120	/		2×0.55
HGK20	20	500-3500	350×120	/		2×1.1
HGK40	40	600-4200	400×120	/		2×1.5
HGK60	60	750-4800	450×120	/		2×2.2
HGK80	80	850-5000	500×120	/	Adjust by bolt	2×3
HGK100	100	1000-5500	500×120×2	/		2×4
HGK150	150	1100-6000	500×120×3	/		2×4
HGK250	250	1100-7500	/	660×260		2×5.5
HGK400	400	1100-7500	/	750×320		2×7.5
HGK500	500	1100-7500	/	750×400		2×11

We, Wuxi Friendship Machinery Co., Ltd, China leading expert in designing and manufacturing metal sheet roll forming machines, PU sandwich panel line. We achieve this by the most skilled, dedicated and diverse group of people in our industry.

Our key products: C/Z/U purline forming line, PU sandwich panel line, steel silo production line, Culvert Corrugated pipe production line, roof/tile/wall/deck/ forming machine, double layers forming machine, drywall stud and track roll forming machine, guardrail roll forming machine, downspout roll forming machine, gutter roll forming machine, simple slitting and cut to length machine, CNC folder/flashing machine, K span forming line, hydraulic decoiler, auto stacker and so on.

We insist on providing quality products and service at affordable price for our clients. The performance record of our products is the backbone of Friendship Machinery's reputation. The proven ability of every set machine is why customers have returned to us repeatedly for new applications, designs and machinery as their products change and expand. We are proud of it

Our machines are well sold in South East and south Asia, Middle East, Africa, South America and East Europe, more than thirty countries.

Warmly welcome to visit our factory and we are looking forward to cooperating with you for splendid future.
