    15m/min Laser Metal Deck Roll Forming Enquipment With PLC System

    Ask Lasest Price
    Brand Name : Friendship
    Model Number : FSM-D08
    Certification : ISO
    Price : as per client requirements
    Delivery Time : 60days
    Payment Terms : T/T or LC
    Supply Ability : 100 sets per months
    • Product Details
    • Company Profile

    15m/min Laser Metal Deck Roll Forming Enquipment With PLC System

    15m/min Laser Metal Deck Roll Forming Enquipment With PLC System

    Main Specifications of Floor Deck Roll Forming Machine

    • Material Spec: Galvanized steel sheet
    • Thickness of Coil Sheet: 0.8 --1.2 mm
    • Main Motor Power of Floor decking roll forming machine: 15kw
    • Forming Speed: 15m/min
    • Hydraulic Station Power: 4kw
    • Quantity of Stands: About 22 groups
    • Hydraulic Pressure: 10~12Mpa
    • Controlling System: PLC
    • Index Error of Length: 10m±1.5mm
    • Total Weight: About 12000kg
    • Voltage: 380V 3 phase 50Hz or at buyers requirement

    Main Components

    • Decoiler ----------------------------------------------- 1 Unit
    • Feeding ----------------------------------------------- 1 Unit
    • Main roll forming machine ----------------------------- 1 Unit
    • Hydraulic cutting device ------------------------------- 1 Unit
    • Hydraulic Station ------------------------------------- 1 Unit
    • PLC computer control -------------------------------- 1 Unit
    • Output table ----------------------------------------- 1 Unit

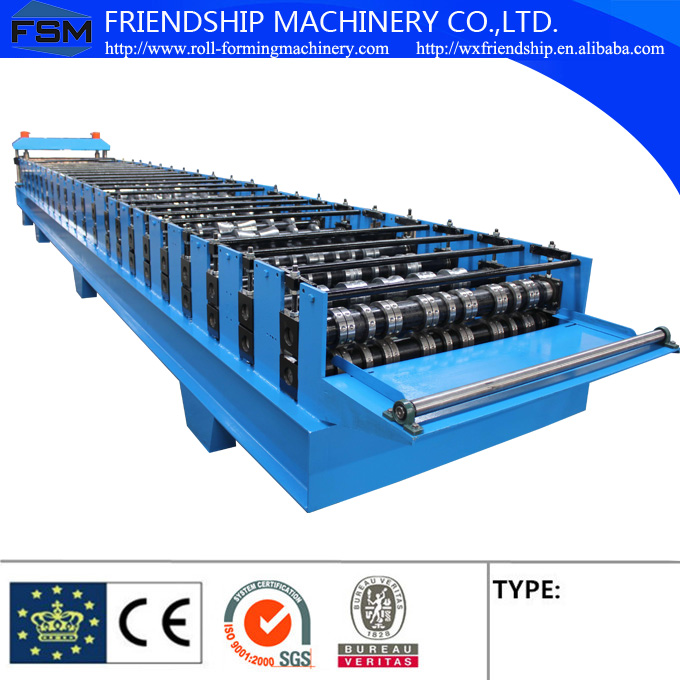

    Main Pics

    Quality 15m/min Laser Metal Deck Roll Forming Enquipment With PLC System for sale
