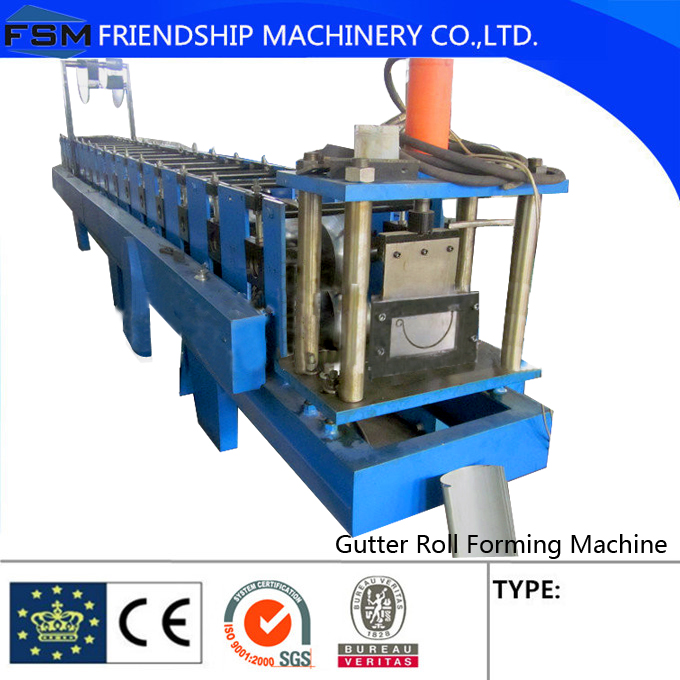

Half Round Gutter Roll Forming Machine

Automatic Length Measuring


Parameter of Gutter Forming Machine

125mm or 150mm, two profiles
working speed: 0m—12m/min (not contain cutting)
roll station: 17-19 stations (base on final design)
material of roller: 45＃forge steel, polished and coated with chrome
material of main shaft:45﹟forge steel diameter roller: Ф65mm
main power: 5.5kw
forming thickness: 0.5-0.6mm painted or galvanized steel.
Transmission: by Chains 1.2inch single line
size of machine: about 7000 x 1000 x 1200 (L x W x H)
weight: about 6000Kgs
color: blue and yellow (also can change depend on customer request)

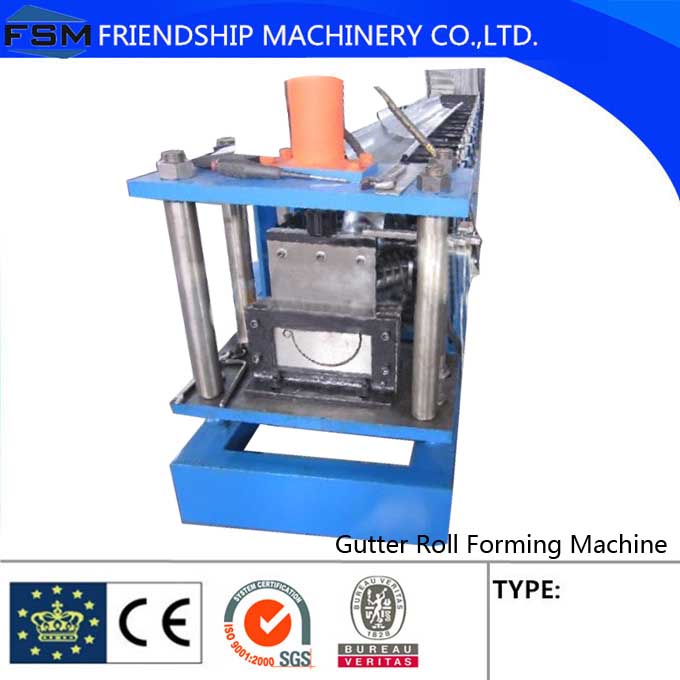

Cutting

(1) Machine adopt hydraulic cutting
(2) Cutting after forming: Cut the sheet after roll forming to required length
(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4) Material of blade: CR12 with heat treatment
(5) Length measuring: Automatic length measuring
(6) Tolerance of length: 3m +/- 1.5mm

de-coiler

Dimensions: 1700mm*1000mm*800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 480mm—550mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

Main Features Of The Machine

• The structure is simple and the appearance of the machine is beautiful because we

• adopt the shape-steel structure and process as a whole after welding. It has the

• ability of strong loading and stable operation when running the machine.

• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

• It is very easy to install the equipment and suitable for producing in the factory.

• The machine has features of low noise and high efficiency.

Working Flow

Passive decoiler---- feeding & guiding---- roll forming--- straightening-- hydraulic cutting---run out table

Our Advantage

• High Quality

• Reliable

• Durable

• Reasonable Price

• Good after Service

•

•
