Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm

    Buy cheap Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm from wholesalers

    Buy cheap Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm from wholesalers
    • Buy cheap Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm from wholesalers
    • Buy cheap Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm from wholesalers
    • Buy cheap Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm from wholesalers
    • Buy cheap Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm from wholesalers
    • Buy cheap Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm from wholesalers
    • Buy cheap Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm from wholesalers

    Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm

    Ask Lasest Price
    Brand Name : Friendship
    Certification : ISO
    Price : as per client requirements
    Delivery Time : 45 days
    Payment Terms : T/T or LC
    Supply Ability : 10 sets per months
    Model Number : 50
    • Product Details
    • Company Profile

    Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm

    Steel Keel Roll Forming Machine light steel-frame stud structure production line use aluminium alloy 0.5-1.0mm

    Technical parameter of ceiling batten roll forming machine:

    No.

    item

    speciafication

    1.

    processing material

    coils

    2.

    processing thickness

    0.5-1.0mm

    3.

    productivity

    15-20m/min

    4.

    roller material

    Cr12

    5.

    number of roller stations

    13

    6.

    roller driven

    decelerating motor+chain transmission

    7.

    diameter of shaft

    Φ46mm

    8.

    length measurement

    encoder

    9.

    cutting mode

    hydraulic cutting device

    10.

    operation mode

    button+touch screen

    11.

    control style

    PLC

    12.

    driven system

    single

    13.

    total power

    5.5kw

    14.

    voltage

    380v 50hz or as your requirements


    Working flow:


    Cantilever decoiler---feeding----rollforming---straightening---hydraulic cutting----run out table

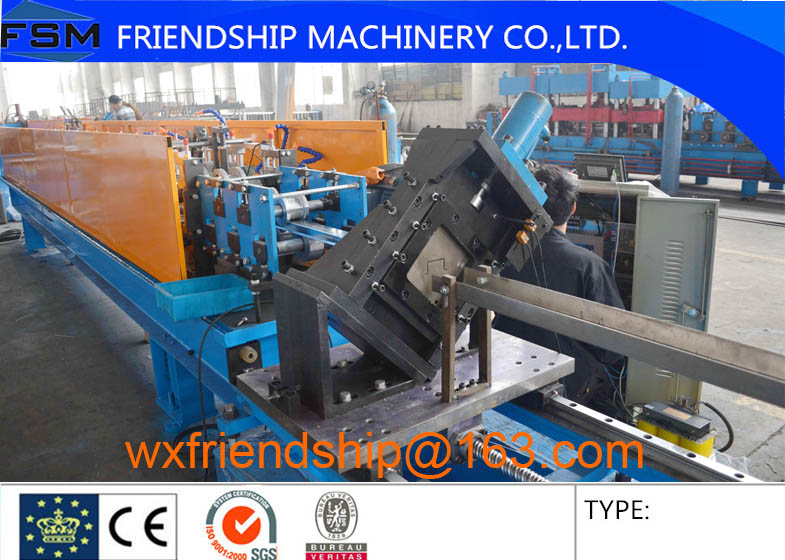

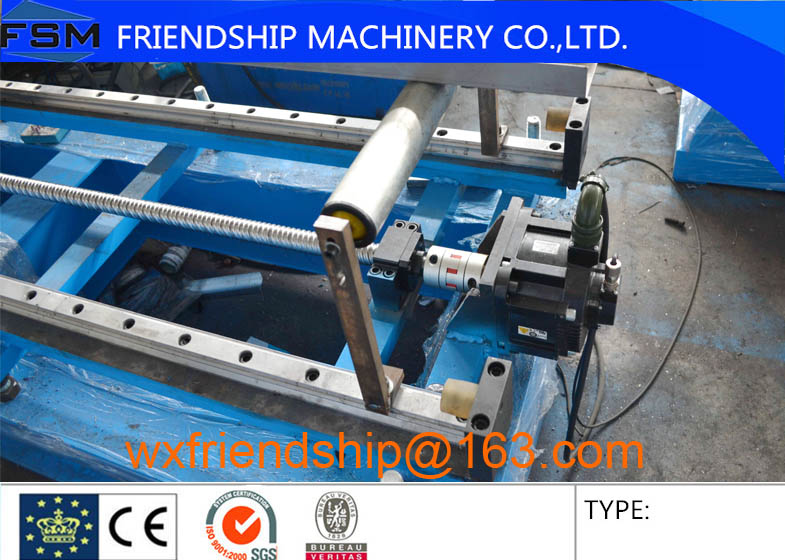

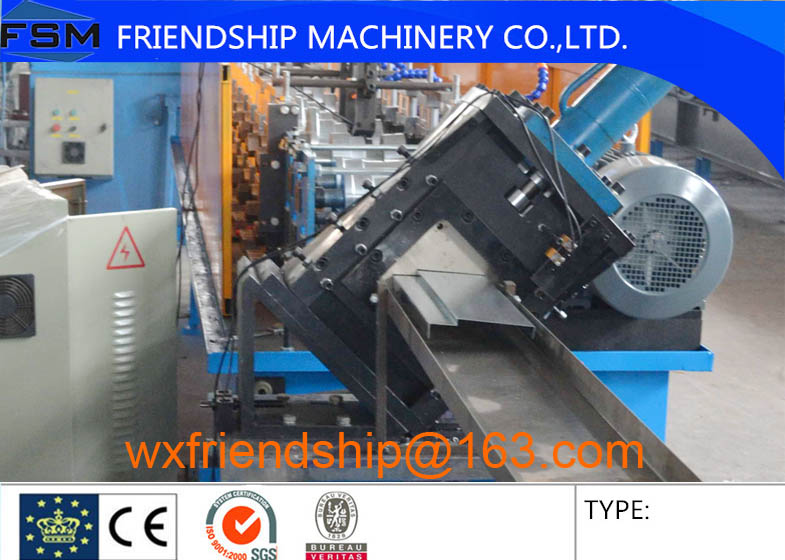

    product picture:


    Introduction of company


    We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.


    We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.


    EXCELLENT QUALITY AND COMPETITIVE PRICE!
    CHOOSE US , CHOOSE THE BEST!
    Thank you for your time!
