Custom Metal Forming Machinery , Steel Track Rroll Forming Machine

Composition of machine

Roll forming main machine……………………………1 unit

Manual de-coiler……………………………………… 1 unit

Control panel………………………………………….1 unit

Hydraulic station…………………………………… …1 unit

Manual out table……………………… …………….2 unit

Spare tools……………………………………………...one box

Details of each composition

A: Roll forming main machine

1: Coil width: base on customer profile (in mm)

2: working speed: 12m—15m/min (not contain cutting)

3: roll station: 12stations

4: material of roller: Gcr15 forge steel, polished and coated with chrome HRC58-62°

5:material of main shaft:45﹟forge steel diameter roller: Ф56mm

6: main power: 5.5kw

7: forming thickness: 0.5mm—1.5mm color steel and galvanized steel

8: Transmission: by Chains 1.0 inch single line

9: size of machine: 6000x800x1200(mm) L x W x H

10: weight: about 4000Kgs

11: color of machine: blue and yellow

12: Cutting:

(1) Machine adopt hydraulic cutting

(2) Cutting after forming: Cut the sheet after roll forming to required length

(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(4) Material of blade: CR12with heat treatment 4SETS cutters

(5) Length measuring: Automatic length measuring

(6) Tolerance of length: 3m +/- 1.5mm

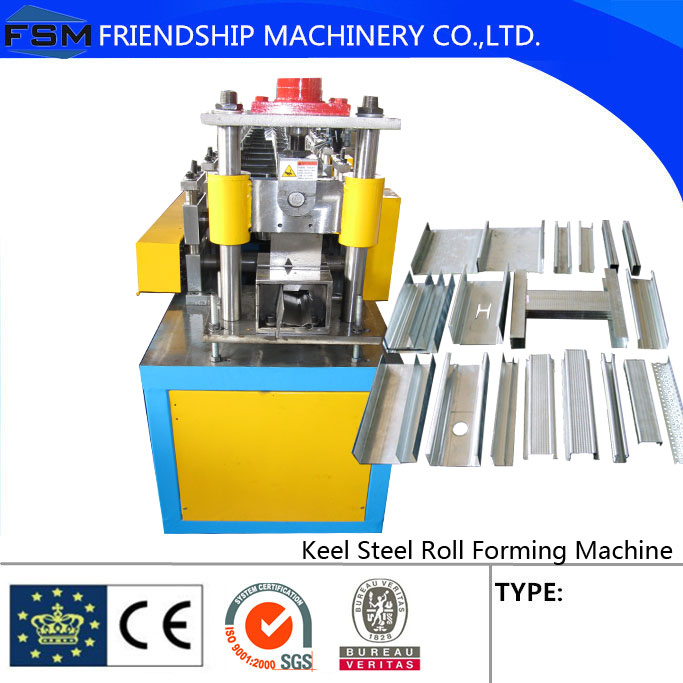

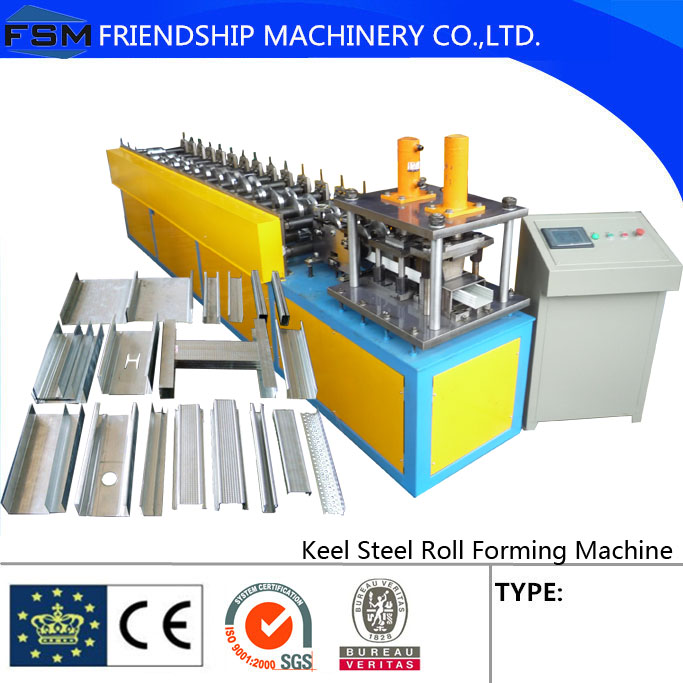

Main Pictures
