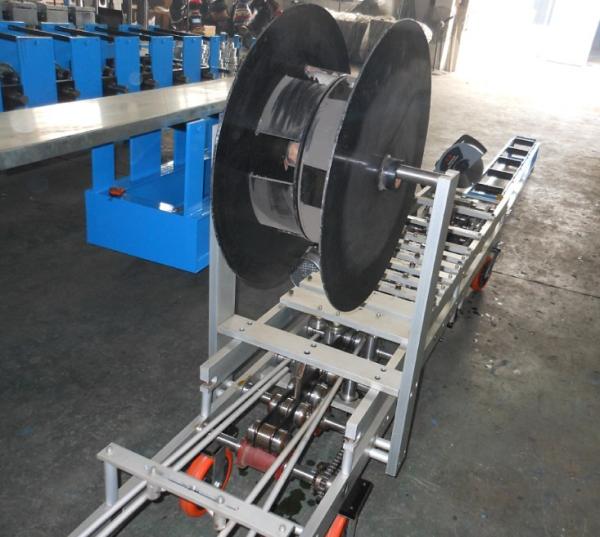

Aluminum Portable Small Down Pipe Roll Forming Machine For Water
Pipe
Main Specifications About Pipe Roll Forming Machine
Pipe Size:
- 2”x 3”, 3”x3”, 3”x4”, Round 4”, Round CUSTOM
(Each machine does one size)
Speed of Portable Rainspout Roll Forming Machine:
- Standard 30 ft./min.
- Optional 45 or 60 ft./min. (aluminum)
Material:
- Aluminum .019 - .024 in.
- Steel 29 - 26 ga.
- Copper 16 oz.
Warranty:
- 1 year limited parts warranty
Spools:
- One 15” I.D. spool included
Electrical:
- 220 volt
- ON/OFF switch
- Forward/Reverse switch
- Entrance JOG button
Models:
- Portable or stationary
- Semi-automated: length control with limit switch
- Round or rectangular models
Drive System:
- Urethane top and bottom drive rollers for smooth even, non-twisting
drive
Frame:
- 1” x 5” Aluminum side blocks
Cutoff Mechanism:
- Hand operated Quadra-shear with built-in
- Crimper or Cutoff saw (Round models)
- Optional automated pneumatic activation
Main Components
- Decoiler ------------------------------------------------ 1 Unit
- Feeding guide ------------------------------------------ 1 Unit
- main roll forming machine ------------------------------ 1 Unit
- Hydraulic cutting device -------------------------------- 1 Unit
- Hydraulic Station --------------------------------------- 1 Unit
- PLC computer control ---------------------------------- 1 Unit
- Output table ------------------------------------------- 1 Unit
Technics flow
Decoiling→guiding and feeding →roll forming →cut to length→run out
table
Profile Drawing
General Description
It can produce the sealed color water pipes through forming the
colored steel sheet and whipstitch it. It adopts PLC control
system, AC frequency conversion speed-adjust technology, therefore
it can automatically cut to length. Curving pipe forming machine is
the complementary equipment which can be used to curve and neck
down the pipe. The whole machine adopts can control to actualize
automatic produce, the angle can be adjust manually. We can design
and manufacture machines for forming different profiles according
to requirement form customers.
Main Features Of The Machine
- The structure is simple and the appearance of the machine is
beautiful because we
adopt the shape-steel structure and process as a whole after
welding. It has the
ability of strong loading and stable operation when running the
machine.
- All the components of machine are from brand-famous enterprise so
that they ensure the machine normal function very effectively.
- It is very easy to install the equipment and suitable for producing
in the factory.
- The machine has features of low noise and high efficiency.
Our Advantage
- High Quality
- Reliable
- Durable
- Reasonable Price
- Good after Service
Factory Picture
Introduction
We, Friendship Machinery Co., Ltd, attaches great importance on
technology innovation, progress has been made on scientific
management as well as Co., culture. China leading expert in
designing and manufacturing equipments for welding and cutting,
automation system and metal works. We use and produce
high-technology utilizing the most available robotic and automatic
techniques. Every work is uncompromisingly designed to improve our
clients' competitiveness and productivity.
We invest more on developing roll forming machine such as Metal
roof & wall panels machines, C&Z purlin machines drywall
Stud-track forming machines,Metal decks machines, No-girder and
Column curves forming machine, Guard rails forming
machines,Downspout pipes forming machines and so on. With fast
development, very short period for construction and beautiful
external appearance, as well reasonable price was occupied in the
market of building industry.
