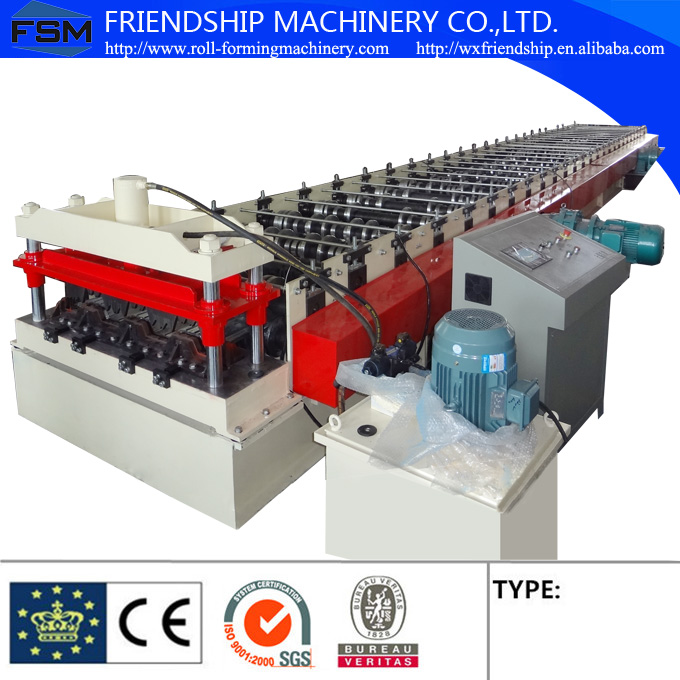

    1.0-2.0mm Thickness GI Steel Metal Deck Roll Forming Machine 15kw With Electric Control Cabinet

    Ask Lasest Price
    Brand Name : FSM MACHINERY
    Certification : ce
    Delivery Time : 60Working days
    Payment Terms : 30% in advance, 70% before the shipment, L/C, Western Union, D/A, MoneyGram, D/P, T/T
    • Product Details
    • Company Profile

    1.0-2.0mm Thickness GI Steel Metal Deck Roll Forming Machine 15kw With Electric Control Cabinet

    1.0-2.0mm Thickness GI Steel Metal Deck Roll Forming Machine 15kw With Electric Control Cabinet


    Main Specifications of Metal Deck Roll Forming Machine

    • Material Spec: Galvanized steel sheet
    • Thickness of Coil Sheet: 1.0--2.0 mm
    • Main Motor Power of Floor decking roll forming machine: 18.5kw
    • Forming Speed: 20m/min
    • Hydraulic Station Power: 4kw
    • Quantity of Stands: About 26 groups
    • Hydraulic Pressure: 10~12Mpa
    • Controlling System: PLC
    • Index Error of Length: 10m±1.5mm
    • Total Weight: About 1800kg
    • Voltage: 380V 3 phase 50Hz or at buyers requirement

    Main Components

    • Decoiler ----------------------------------------------- 1 Unit
    • Feeding ----------------------------------------------- 1 Unit
    • Main roll forming machine ----------------------------- 1 Unit
    • Hydraulic cutting device ------------------------------- 1 Unit
    • Hydraulic Station ------------------------------------- 1 Unit
    • PLC computer control -------------------------------- 1 Unit
    • Auto stacker ----------------------------------------- 1 Unit
    Application:

    Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...
