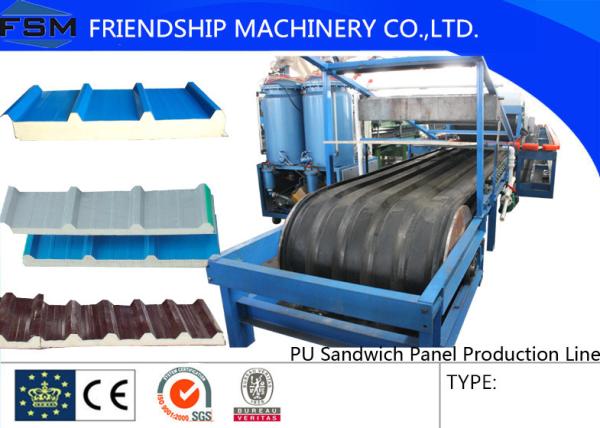

    JF100 Type PU Sandwich Panel Production Line For 30-200mm

    JF100 Type PU Sandwich Panel Production Line For 30-200mm


    The features of machine

    • This machine is suitable to PU sandwich roduction,such as wall panel and roofing panel.the plate can insulate heat,sound and prevent burn.
    • Using heated air recycle oven,strictly control the temperature of pu foaming and solidification in suitable range.
    • Using high pressure foaming system,precise measurement,high stability,little dust in locale,protect the worker health.
    • Using 141B Or C5 as foaming agent.instead of carbon chloral-fluoride,make the pu foaming treatment become environmental production ceate.
    • Operation system controlled by plc computer,personal design and simple operation.

    General description of machine

    • JF100 type pu sandwich panel line is an automatic production line,wich is consisting of decoiler,film coating,pre-cutting,cutting equipment,roll forming system,preheating,foaming,solidification,band saw cutting,cooling,stacking and packing.
    • The whole line integrates technologies of mechanics,chemistry,eletrical control,hydraulic pressure pneumatic and temperature control.

    Technical parameter

    ItemParameter
    Type of materialColcor steel sheet;galvanized sheet,aluminum sheet
    Thickness of material(mm)0.4-0.8
    Width of material(Mpa)1250(Max)
    Length of panel(mm)2000-16000
    Width of panel(mm)600-1200
    Thickness of panel(mm)30-200(Not including height of corrugation)
    Production speed(m/min)3-8(Adjustable)
    Valid length of double belt conveyor(mm)16000-36000
    Work pressure on pouring foam(Bar)150-200
    Total power(KW)about 300
    Total size(mm)(L*W*H)130000*15000*6000

    Introduction of company


    We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.

    We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.

    Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
