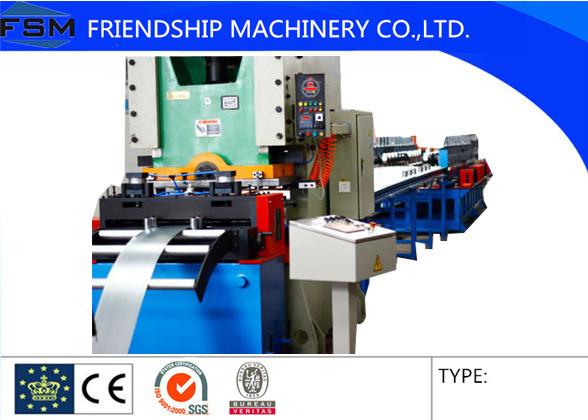

380V 50HZ 3Phases Cable Tray Roll Forming Machine For 1.5-2.0mm Thickness Colored plate

    Buy cheap 380V 50HZ 3Phases Cable Tray Roll Forming Machine For 1.5-2.0mm Thickness Colored plate from wholesalers

    Buy cheap 380V 50HZ 3Phases Cable Tray Roll Forming Machine For 1.5-2.0mm Thickness Colored plate from wholesalers
    • Buy cheap 380V 50HZ 3Phases Cable Tray Roll Forming Machine For 1.5-2.0mm Thickness Colored plate from wholesalers

    380V 50HZ 3Phases Cable Tray Roll Forming Machine For 1.5-2.0mm Thickness Colored plate

    Ask Lasest Price
    Price : as per client requirements
    Payment Terms : T/T or LC
    Supply Ability : 100 sets per months
    Brand Name : Friendship
    Certification : ISO
    Delivery Time : 30-60days
    • Product Details
    • Company Profile

    380V 50HZ 3Phases Cable Tray Roll Forming Machine For 1.5-2.0mm Thickness Colored plate

    380V 50HZ 3Phases Cable Tray Roll Forming Machine

    For 1.5-2.0mm Thickness Colored plate

    Introduction of Cable tray making machine

    • Condition: New
    • Tile Type: Colored Steel
    • Use: tray Production
    • Capacity: 5-15m/min
    • Power(W): 11 kw
    • Voltage: 380V
    • Dimension(L*W*H): 13.0*1.5*1.2m
    • Weight: 7.8T
    • Warranty: 12 months After-sales
    • Service Provided: Engineers available to service machinery overseas
    • Color: blue (Or according to the customer required)
    • Control: PLC control
    • Raw material thickness: 1.5-2.0mm steel, color steel, GI
    • Equipment components: Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
    • Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.


    Specifications technical of machine

    NO.Main parameter of roll forming machine
    1Suitable to processColor steel plate
    2Width of the place500-1000mm
    3Rollers18 stations
    4Dimensions13*1.5*1.2m
    5Power11KW
    6Thickness of the plate1.5-2.0mm
    7Speed of machine5-12m/min
    8Diameter of the roller80mm
    9WeightAbout 7.8T
    10Voltage380V 50HZ 3Phases
    11Rolling materialCarbon Steel 45#
    12Material of the cutting plateCr12
    13Processing precisionWithin 1mm
    14Control systemPLC control


    Our advantages of machine

    • More than 10 years life
    • Size 13.0*1.5*1.2m
    • 12 months guarantee
    • Good quality, lowest price.

    Introduction of company


    We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.

    We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.

    Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
