K-Style Gutter Roll Forming Machine For Rainwater Gutter Semi-automated

    Buy cheap K-Style Gutter Roll Forming Machine For Rainwater Gutter Semi-automated from wholesalers

    Buy cheap K-Style Gutter Roll Forming Machine For Rainwater Gutter Semi-automated from wholesalers
    • Buy cheap K-Style Gutter Roll Forming Machine For Rainwater Gutter Semi-automated from wholesalers
    • Buy cheap K-Style Gutter Roll Forming Machine For Rainwater Gutter Semi-automated from wholesalers

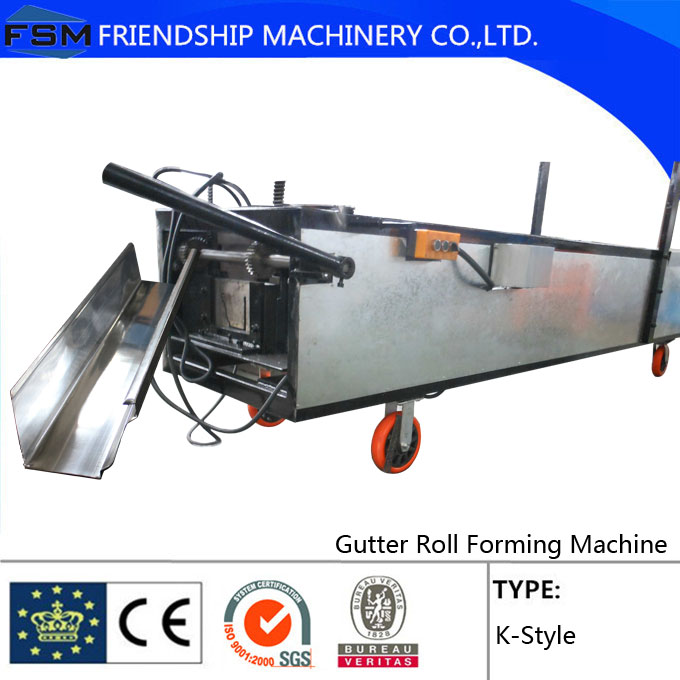

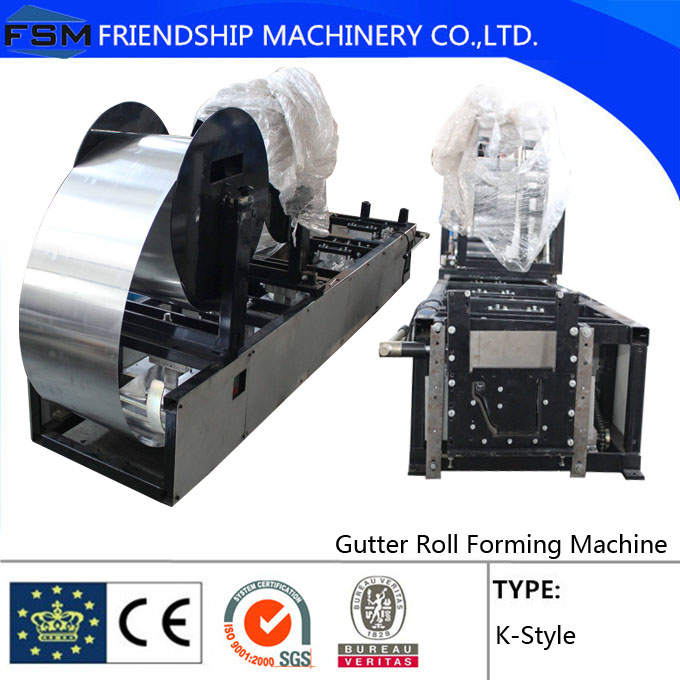

    K-Style Gutter Roll Forming Machine For Rainwater Gutter Semi-automated

    Ask Lasest Price
    Brand Name : Friendship
    Certification : ISO
    Price : as per client requirements
    Delivery Time : 60days
    Payment Terms : T/T or L/C
    Supply Ability : 10 sets per month
    • Product Details
    • Company Profile

    K-Style Gutter Roll Forming Machine For Rainwater Gutter Semi-automated

    Style Gutter Roll Forming Machine For Rainwater Gutter Semi-automated


    Materials Formed


    Thickness:

    l Steel : 0.3mm to 0.6mm

    l Aluminum : 0.5mm to 0.8mm

    l Copper : 0.5mm to 0.7mm


    Coil Width:

    5” Machine: 300mm to 315mm

    6” Machine: 380mm to 381mm

    7'' Machine: 450mm to 457.2mm

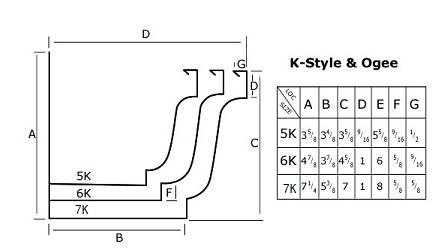

    Sizes:

    5'',6'',7'',5''/6'',6''/7''


    Specification Size

    GM5

    GM6

    GM7

    GM5/6

    GM6/7

    Model

    Portable or stationary; Semi-automated : length control with limit switch

    Driver system

    Bottom drive rollers and six top drive rollers for smooth

    even, non-twisting drive

    Hard chrome steel forming rollers

    Urethane power drive system

    Shear

    Hand operated Quadra-shear with built-in crimper or Cutoff saw

    Speed

    Standard 30 ft./min.

    Optional 45 or 60 ft./min. (aluminum)

    Control

    Push button and related controls

    Forming

    Stainless steel forming rollers

    Electrical

    Configured to 110 volt or 220 volt

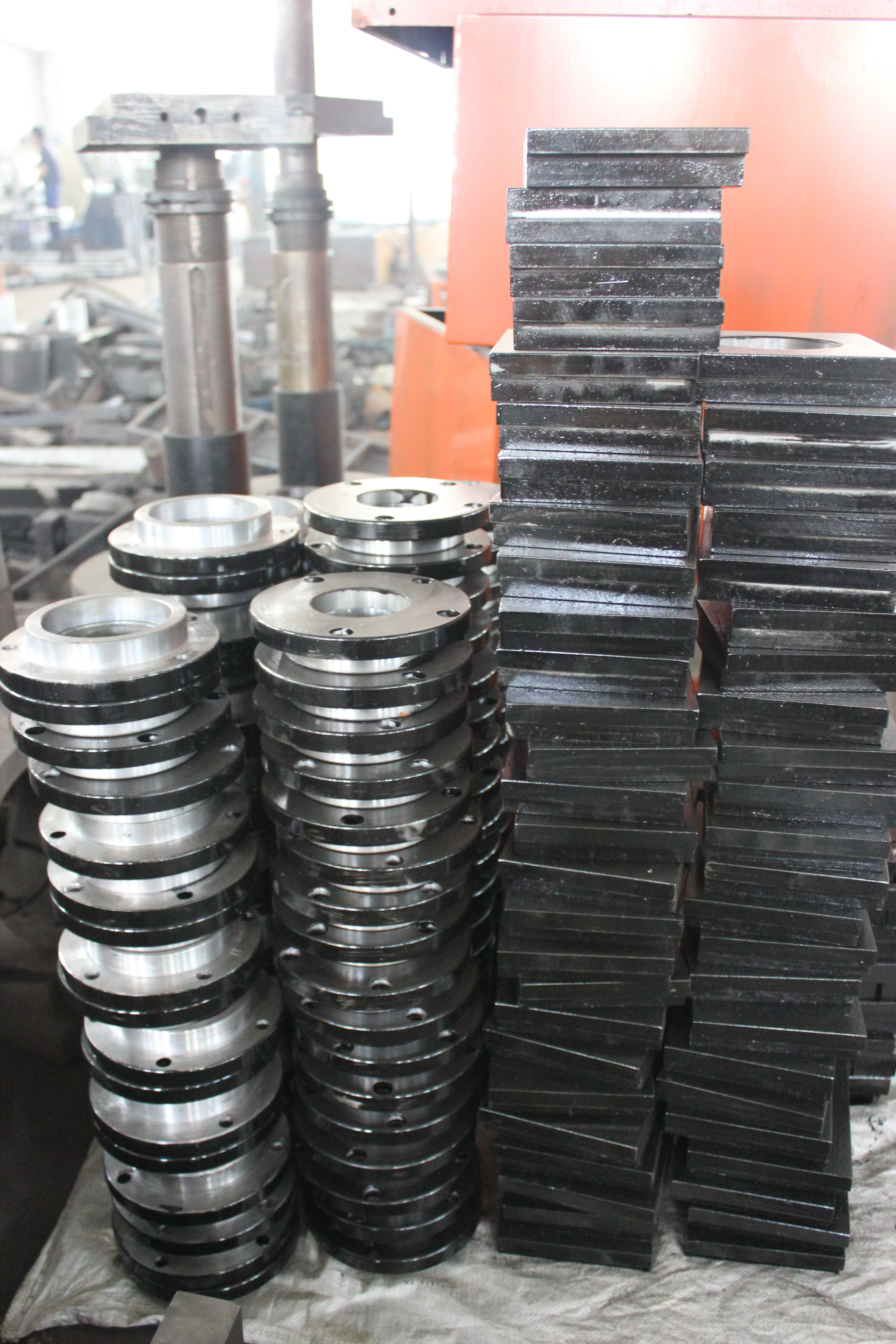

    Factory Picture



    Introduction


    We invest more on developing roll forming machine such as Metal roof & wall panels machines, C&Z purlin machines drywall Stud-track forming machines, Meteal decks machines, No-girder and Column curves forming machine, Guard rails forming nachines, Downspout pipes forming machines and so on.With fast development , very short period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.


    EXCELLENT QUALITY AND COMPETITIVE PRICE!

    CHOOSE US , CHOOSE THE BEST!
