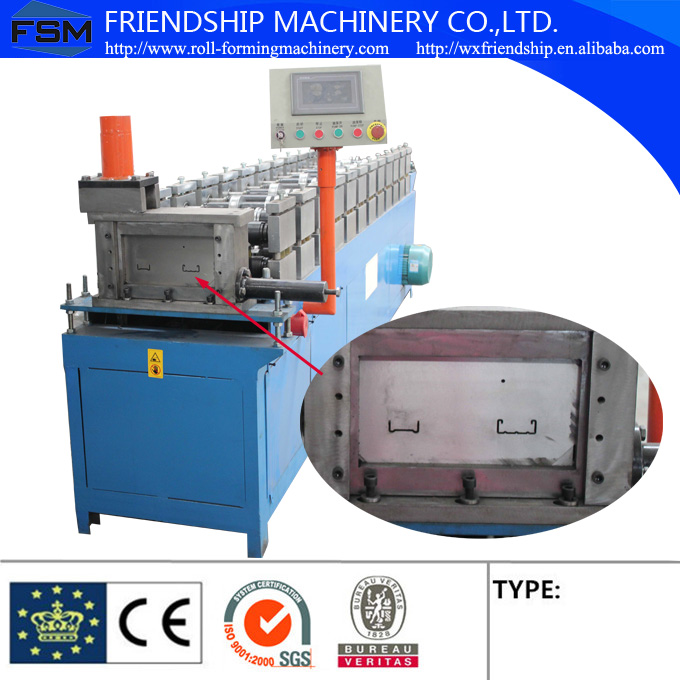

    0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System

    Ask Lasest Price
    Brand Name : FSM MACHINERY
    Model Number : HYJ Series
    Certification : ce
    Price : 13800USD
    Payment Terms : 30% in advance, 70% before the shipment, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 60days
    • Product Details
    • Company Profile

    0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System

    0.4-0.8mm Thickness GI Steel Stud and Track Roll Forming Machine With PLC Control System

    Technical parameter:

    No.

    item

    speciafication

    1.

    processing material

    GI strip coils

    2.

    processing thickness

    0.4-0.8mm

    3.

    productivity

    10-15m/min

    4.

    roller material

    Cr12

    5.

    number of roller stations

    10

    6.

    roller driven

    decelerating motor+chain transmission

    7.

    diameter of shaft

    Φ50mm

    8.

    length measurement

    encoder

    9.

    cutting mode

    hydraulic cutting device

    10.

    operation mode

    button+touch screen

    11.

    control style

    PLC

    12.

    driven system

    single chian

    13.

    total power

    5.5kw

    14.

    voltage

    380v 50hz or as your requirements

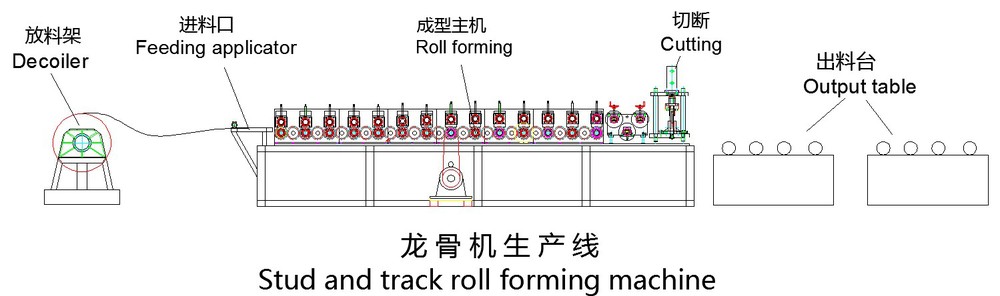

    Working flow:


    Cantilever decoiler----feeding----rollforming---- straightening-----run out table
